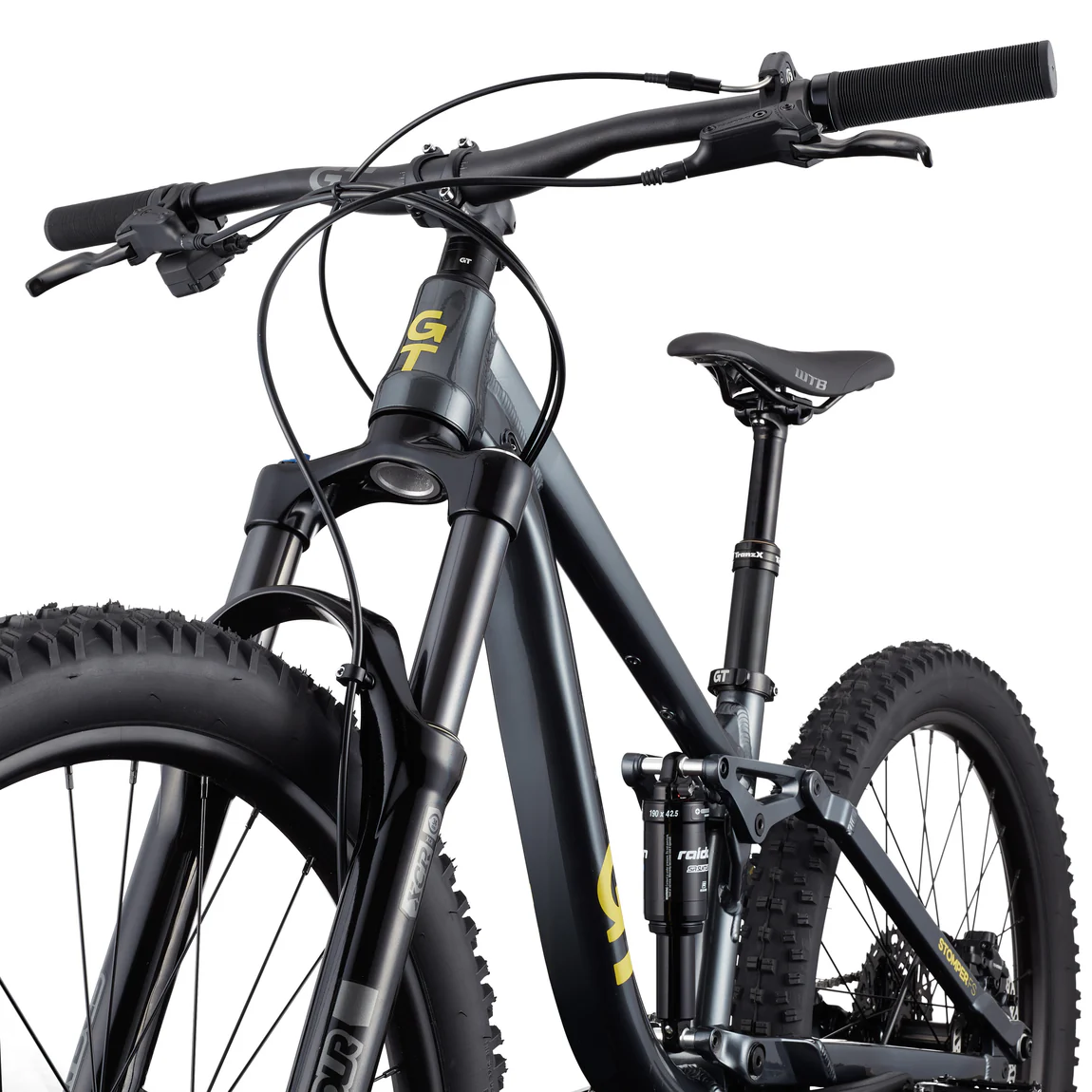

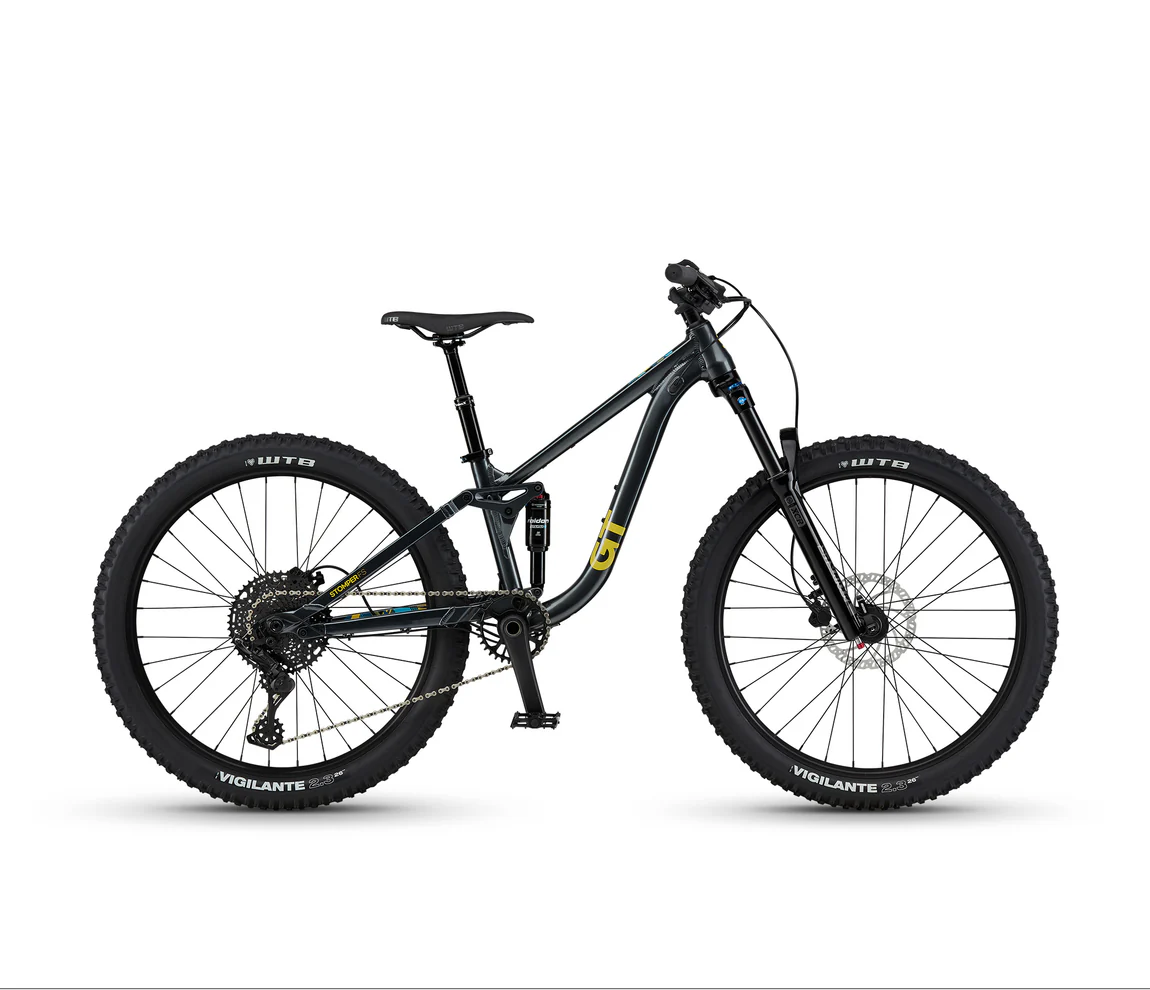

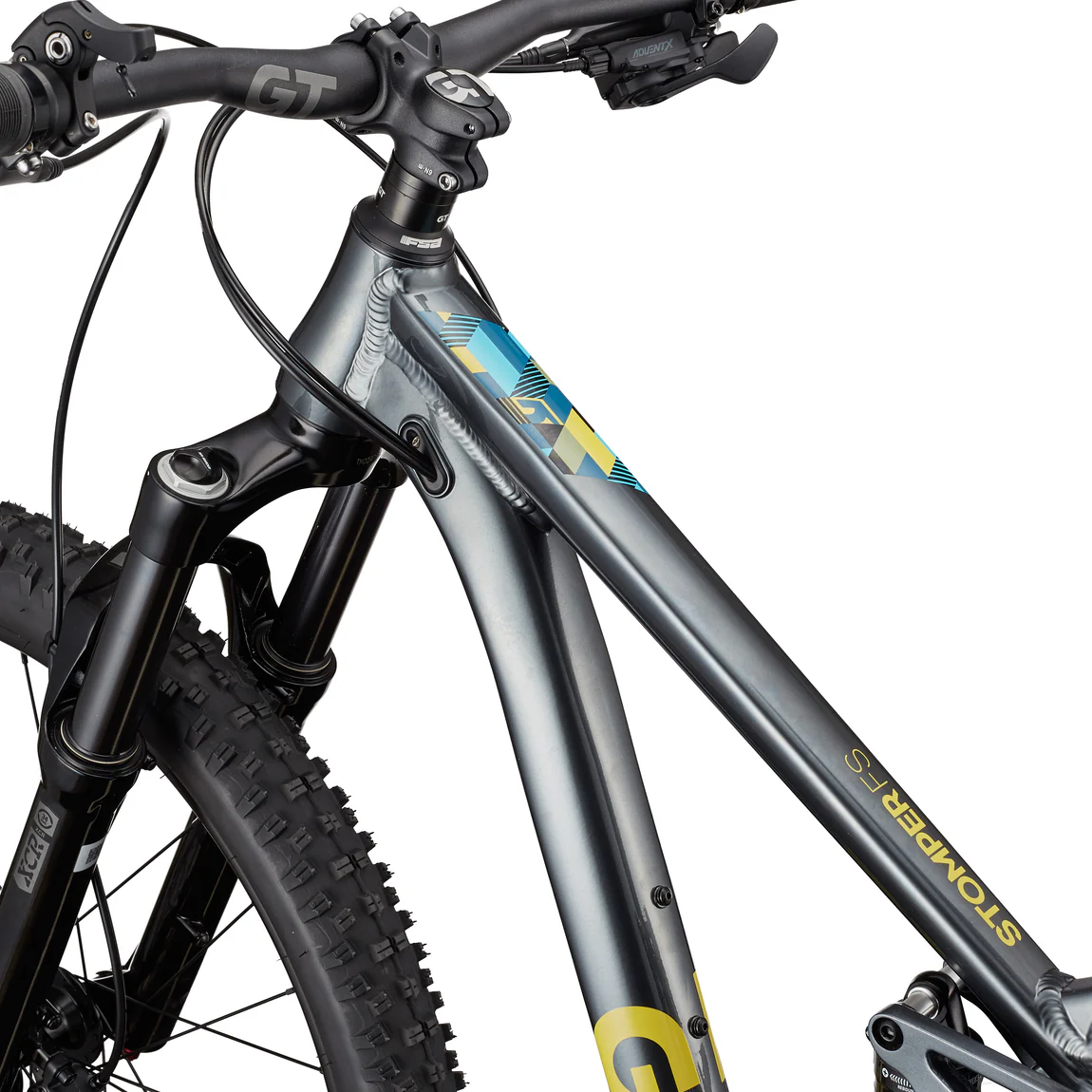

Stomper FS Ace
The Stomper FS takes the technology and features of our adult full suspension line and bundles them into a genuine youth-focused bike for young riders eager to get some extended play time on the trail.
- SR Suntour XCM fork
$3,150.00
product description
Stomper FS Ace
LTS Suspension
Linkage Tuned Suspension offers a steady and economical suspension foundation. The 4-bar system is intended to be a highly adjustable suspension platform that maintains ground-hugging traction even under hard braking.
Kid friendly & shred-ready
Low standover with 26” wheels provide a confident ride, no matter the type of terrain.
UDH Equipped
The SRAM Universal Derailleur Hanger is the most accessible hanger on the market. The UDH protects your derailleur from hits by pivoting back and out of the way and slipping slightly when an accident occurs. Strong, dependable, easy to locate, and even easier to replace!
Frame
frame: Stomper FS 26* Frame, 120mm Travel, BSA 73mm, Tapered Head Tube, Boost 12×148mm Thru-Axle, SRAM UDH, 190×42.5mm Shock Mount
sizes available: One Size
fork: SR Suntour XCR34 Air, 130mm, 15x110mm

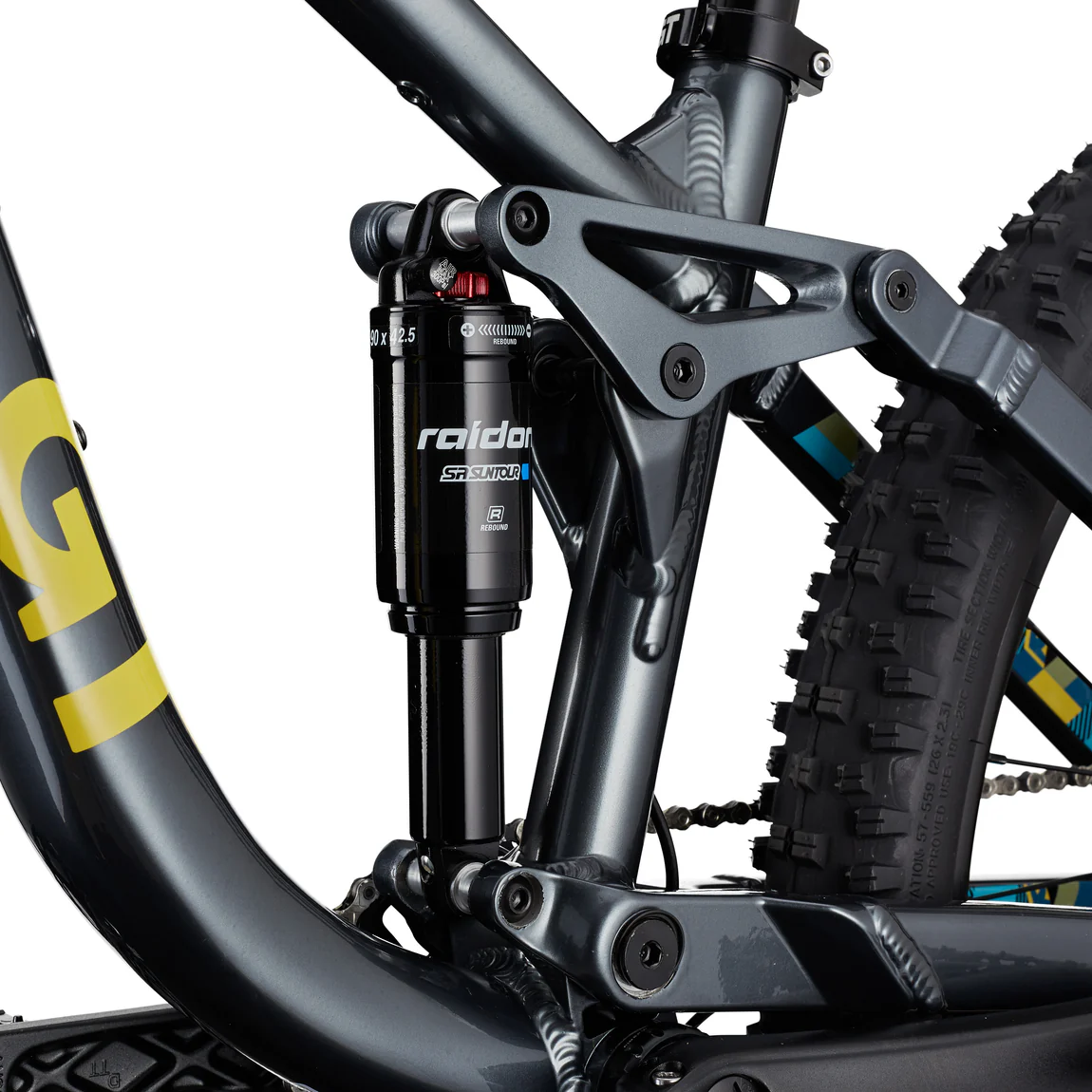

rear shock: SR Suntour Raidon R, 190×142.5mm
wheel size: 26
Wheels
rims: WTB ST 25 TCS, 32h, Tubeless Ready
front hub: Formula, 15x110mm
rear hub: Formula 12x148mm, HG Freehub Body
front tire: WTB Vigilante Comp, 26 x 2.3*
rear tire: WTB Vigilante Comp. 26 x 2.3*
Drivetrain
rear derailleur: MicroSHIFT Advent-X
shifters: MicroSHIFT Advent X, 10-speed
rear cogs: MicroSHIFT. 11-48. 10-speed
chain: KMC X10, 10-speed
crank: Prowheel MPX. 30T
bottom bracket: Cartridge, square taper
pedals: GT Flat Pedal, resin
Cockpit
handlebar: Steel Riser Bar, 20mm Rise, 600mm
stem: GT Alloy, 35mm
grips: GT MTB
headset: FSA NO. 42e
seatpost: TranzX Dropper, 31.6mm, 80mm
saddle: WTB Silverado
Brakes

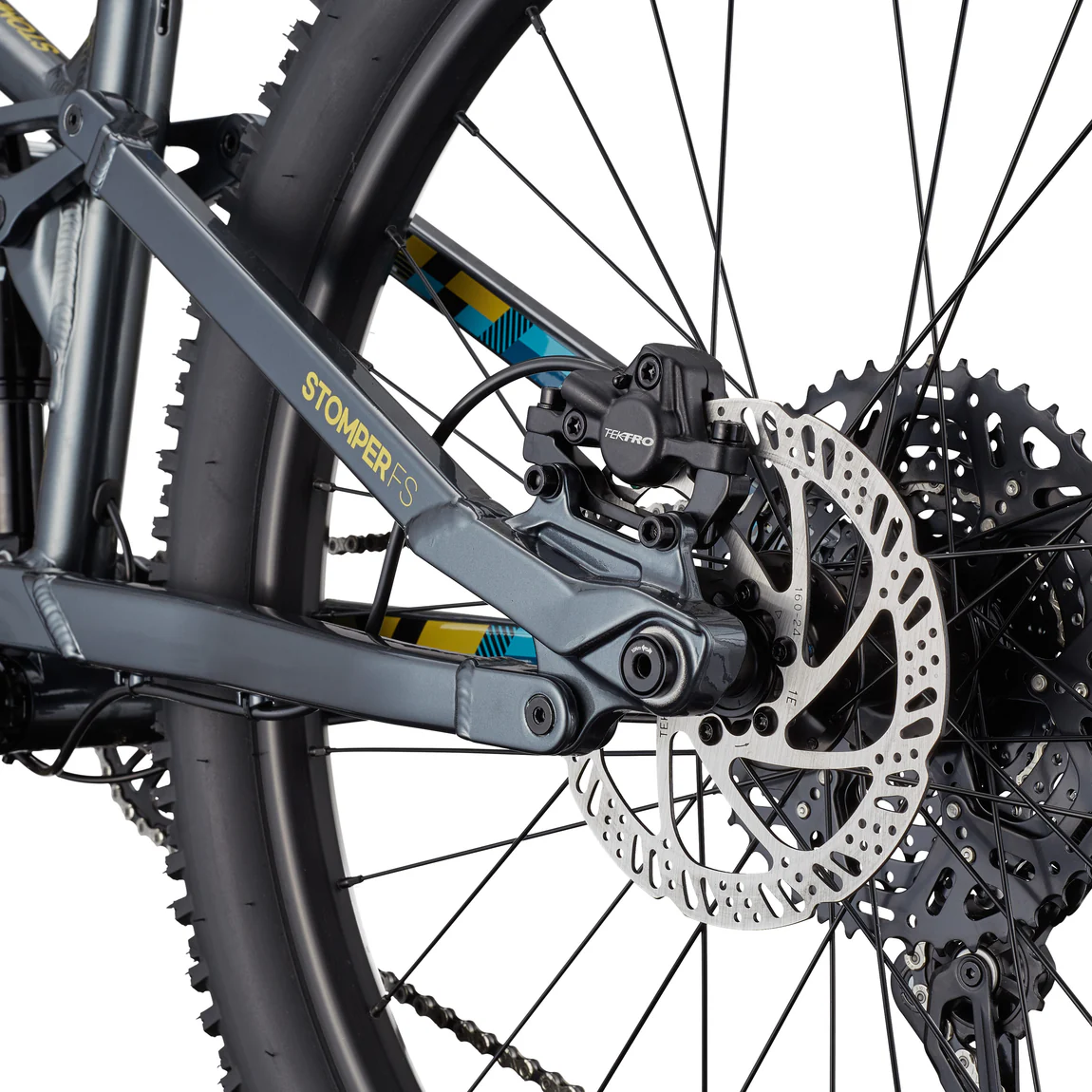

brakes: Hydraulic Disc Brake
Geometry
| Sizes (mm) | One Size |
|---|---|
| Seat tube length | 32.5 |
| Seat tube angle effective | 76.5 ° |
| Seat tube angle actual | 78 ° |
| Top tube horizontal | 46.4 |
| Top tube actual | 47.4 |
| Head tube angle | 65 ° |
| Standover | 67.5 |
| Head tube length | 9.5 |
| Stem length | 40 |
| Wheelbase | 105.8 |
| Front center | 63.3 |
| Chainstay length | 42.5 |
| Bottom bracket drop | 0.7 |
| Bottom bracket height | 34 |
| Fork rake | 4.6 |
| Trail | 11.1 |
| Stack | 53.8 |
| Reach | 33.5 |
| Travel rear | 12.1 |
