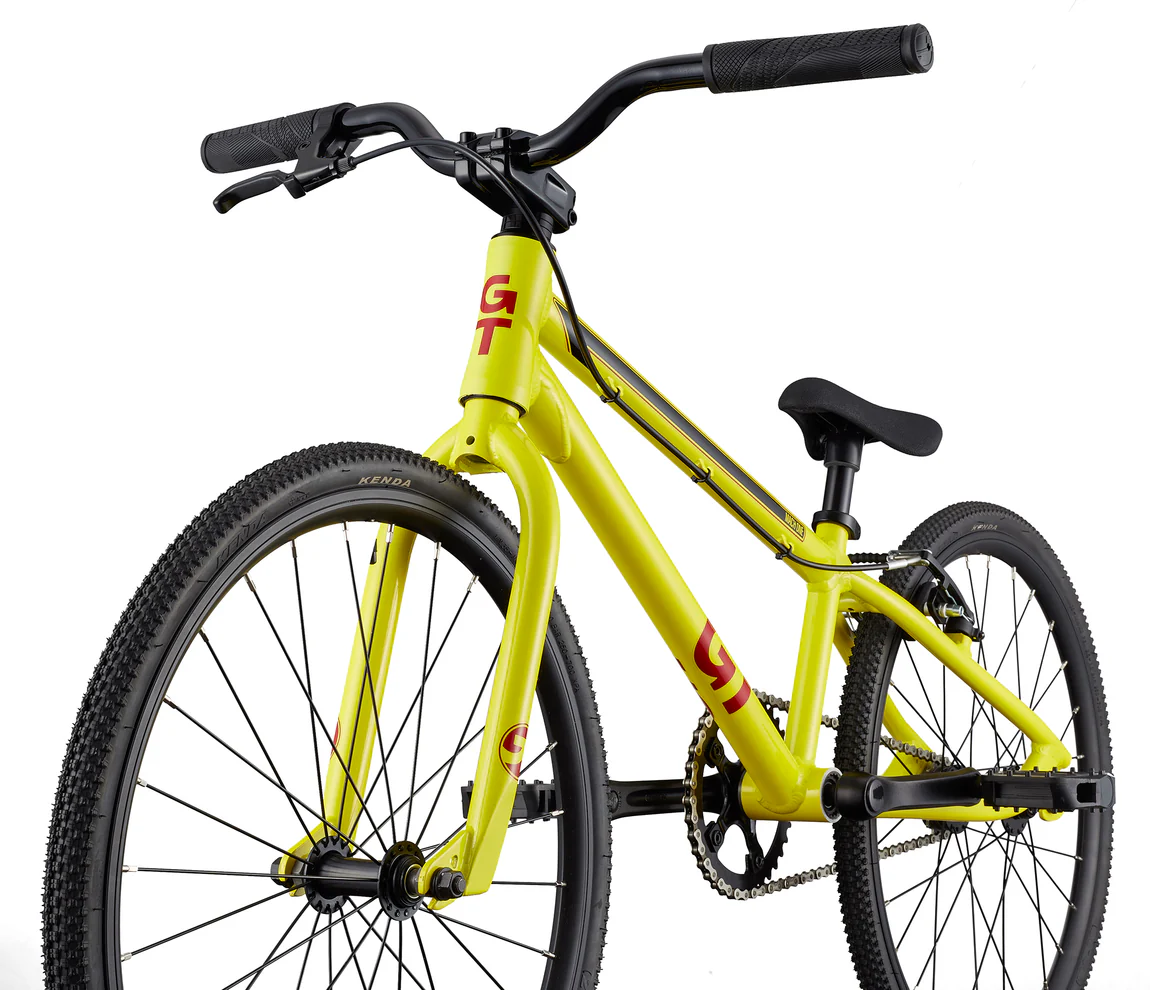

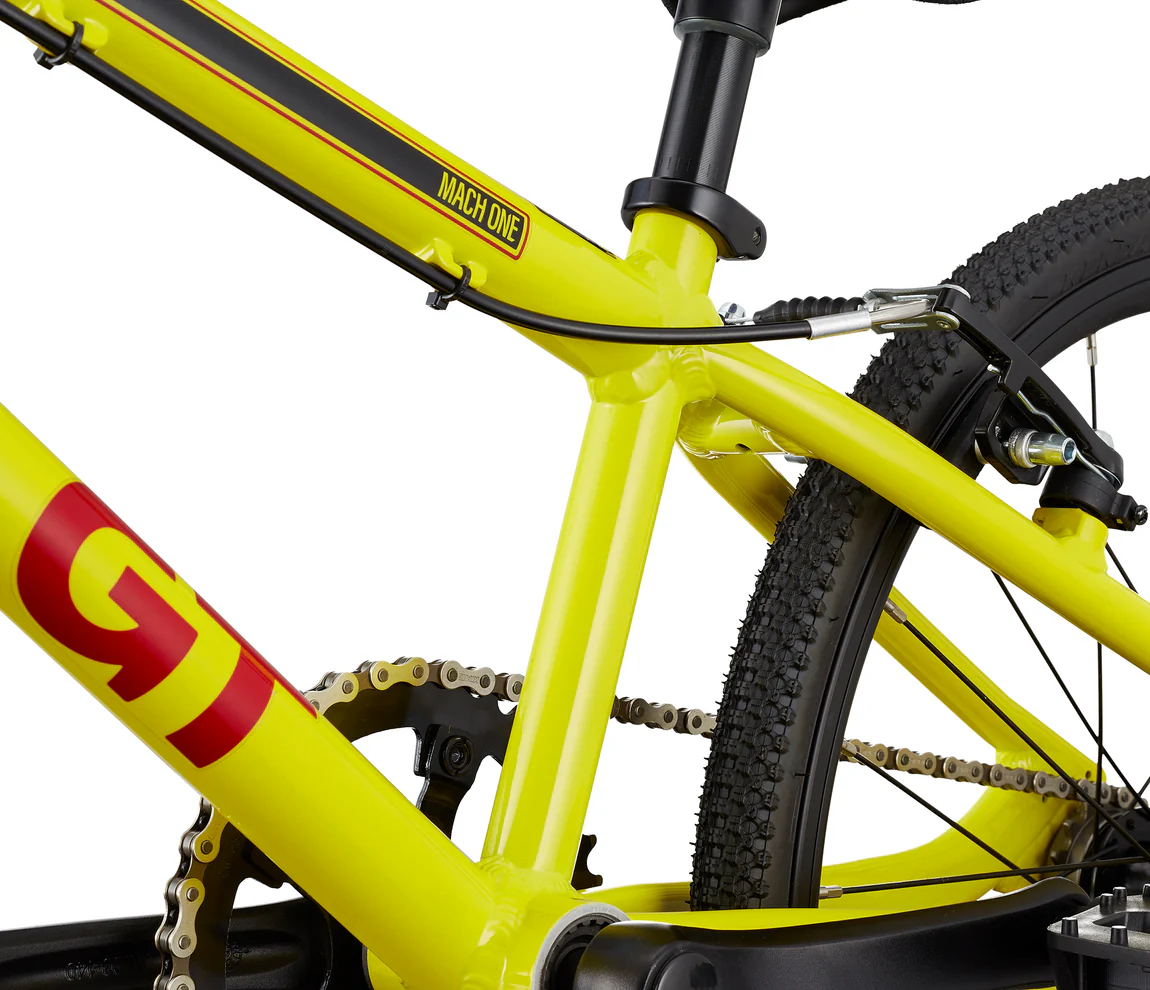

Mach One Mini
Size
Entry to BMX Racing shouldn’t cost an arm and a leg. The Mach One Mini is made to fit a riders 4’6″ & under.
- Influence by Speed alloy frame with reverse dropouts
- GT Top Load Stem
- GT Alloy Forged 3pc, Square Taper, 130 BCD Spider
$345.00
product description
Mach One Mini
Frame
frame: GT Mach One Race MK2, 6061 Alloy, Euro BB, Reverse Dropouts, V-Brakes, 1-1/8″ Integrated H/T
sizes available: MINI
fork: GT BMX Race, Hi-Ten Steel 1 1/8″ Steerer, 312mm A/C, 3/8″ Dropouts
wheel size: 20
Wheels
rims: Alloy Double Wall, 28h
front hub: Steel Body, 28h, 3/8″ Axle
rear hub: Steel Flip Flop Thread-on Body, Freewheel, 28h, 3/8″ Axle
front tire: Kenda Race, 20 x 1-3/8″
rear tire: Kenda Race, 20 x 1-3/8″
spokes: Stainless Steel, 14g
Drivetrain
rear cogs: 16T Freewheel
chain: KMC S1
crank: GT Alloy Forged 3pc, 140mm, Square Taper, 130 BCD 38T Steel Chainring
bottom bracket: Threaded Square Type
pedals: GT Mini Size Platform, PP Material
Cockpit
handlebar: GT Race, Steel, 2″H x 22″w/ 8° Back, 2° Up
stem: GT Top Load, 40mm
grips: GT Statement
headset: 1-1/8″ Sealed Integrated (41.8 x 45)
seatpost: Combo Alloy 22.2 Integrated
saddle: GT Uni Mini Padded
Brakes
brakes: Alloy V-type
brake levers: Alloy V-type
Geometry
| Sizes (in) | XS |
|---|---|
| Top tube actual | 17.75 |
| Head tube angle | 13.15 ° |
| Seat tube angle | 72° ° |
| Standover | 7 |
| Head tube length | 4.33 |
| Wheelbase | 33 |
| Front center | 19.94 |
| Chainstay length | 13.15 |
| Bottom bracket height | 10.75 |
| Seat post diameter | 0.875 |
| Axel to crown | 12 |
| Dropouts | 10mm |
| Head tube type | Integrated |
| Brake mounts | V-Brake |
| Rider area | 20.14 |
| Bottom bracket type | Threaded |
| Fork rake | 1.3 |
| Axel to crown | 12 |
