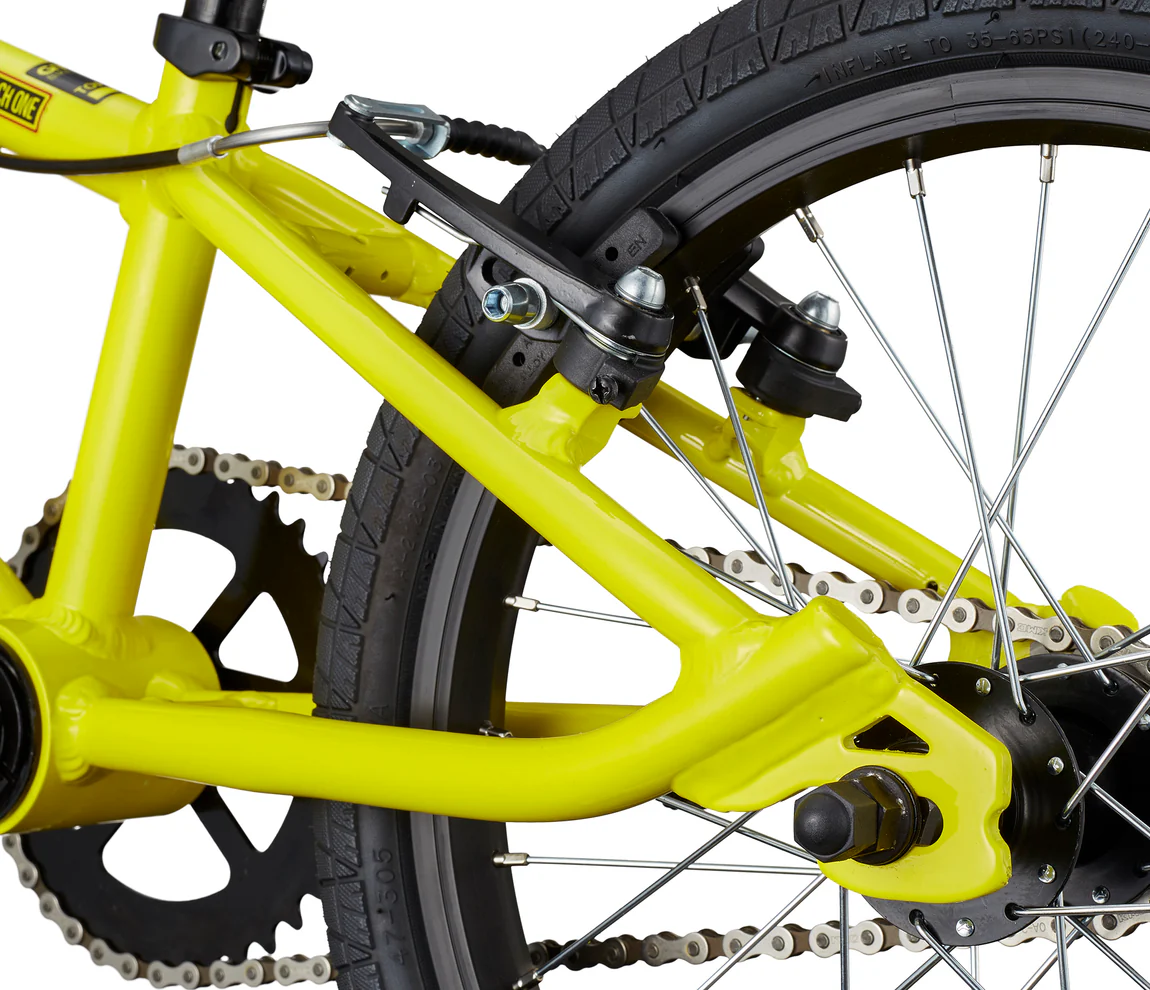

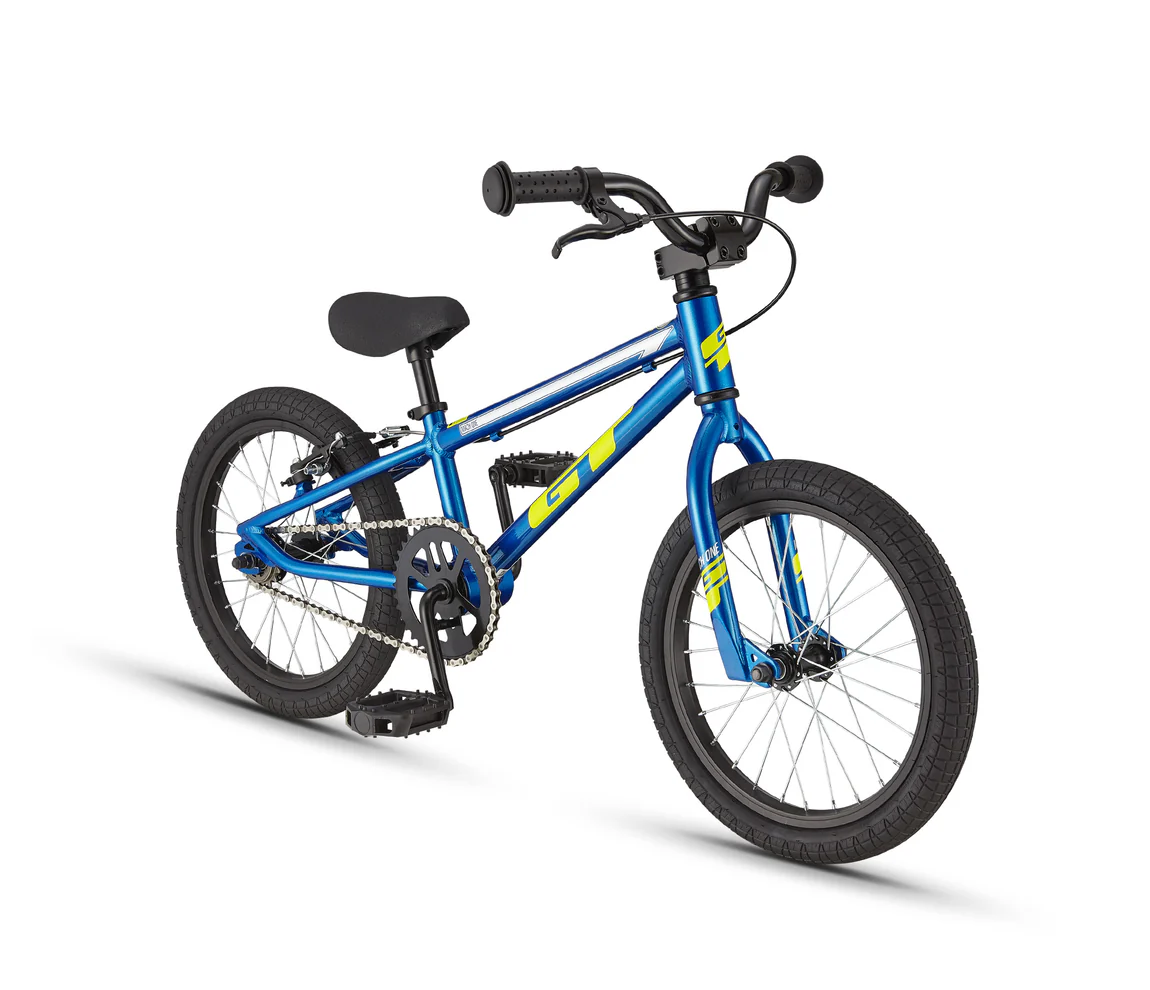

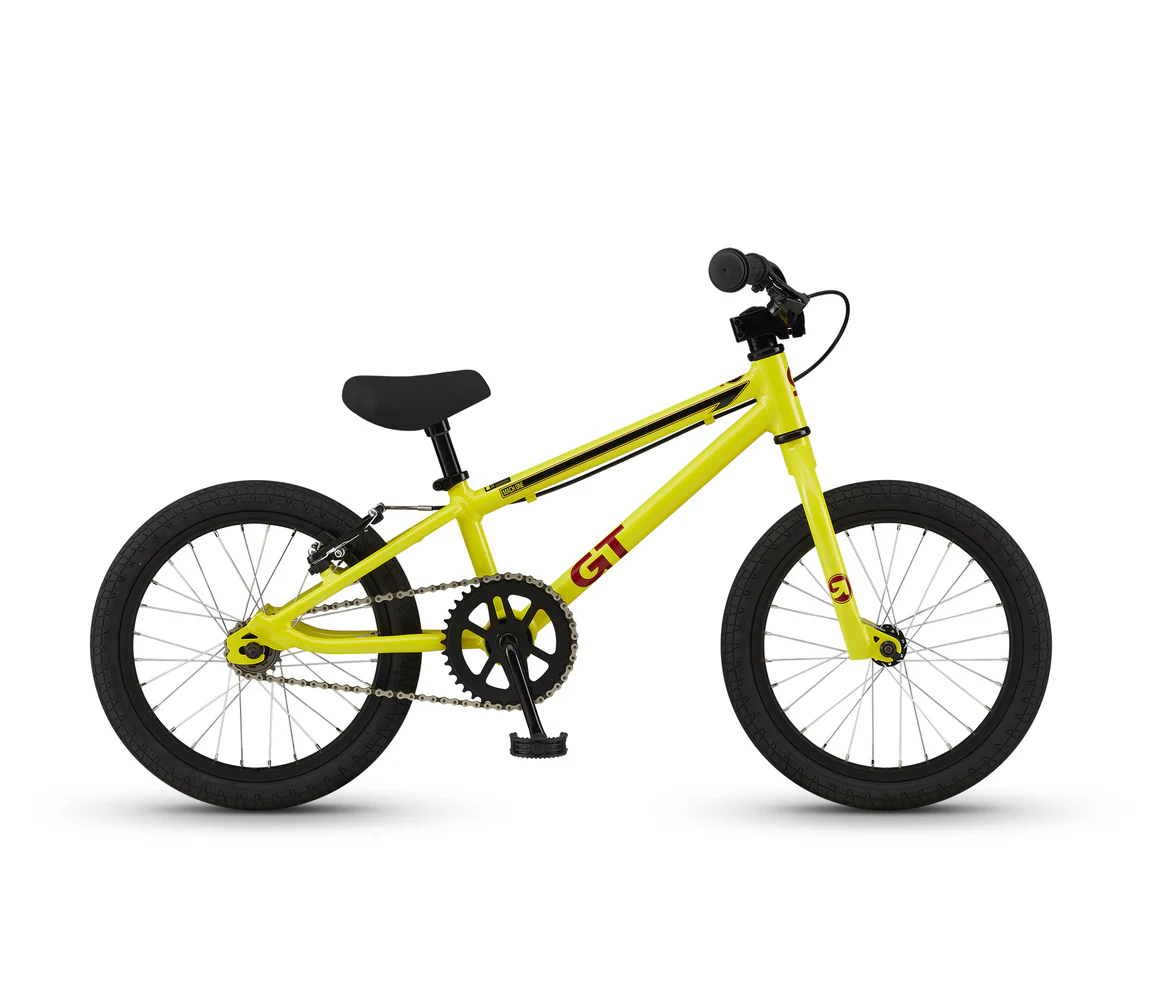

Mach One 16
Size
Entry to BMX Racing shouldn’t cost an arm and a leg. Our smallest Mach One offering with 16″ wheels. Ideal for a rider 3’6″ & under.
- Influence by Speed alloy frame with reverse dropouts
- GT Front Load Stem
- Hi-Ten Steel Fork
$320.00
product description
Frame
frame: GT Mach One Race MK2, 6061 Alloy, American BB, Reverse Dropouts, V-Brakes, 1-1/8″ H/T
sizes available: One Size
fork: GT BMX Race, Hi-Ten Steel 1 1/8″ Steerer, 264mm A/C, 3/8″ Dropouts
wheel size: 16
Wheels
rims: Alloy Single Wall, 28h
front hub: Steel Body, 28h, 3/8″ Axle
rear hub: Steel Flip Flop Thread-on Body, Freewheel, 3/8″ Axle
front tire: Innova, 16 x 1.75″
rear tire: Innova, 16 x 1.75″
spokes: Stainless Steel, 14g
Drivetrain
rear cogs: 16T Freewheel
chain: KMC S1
crank: Steel Forged 1pc., 114mm Arms, 36T Steel Chain Ring
bottom bracket: American BB
pedals: GT Mini Size Platform, PP Material
Cockpit
handlebar: GT Race, Steel, 3″H x 17.7″W
stem: Alloy Front Load, 37mm
grips: GT Junior
headset: 1-1/8″ Threadless, Steel
seatpost: Combo Alloy 22.2 Integrated

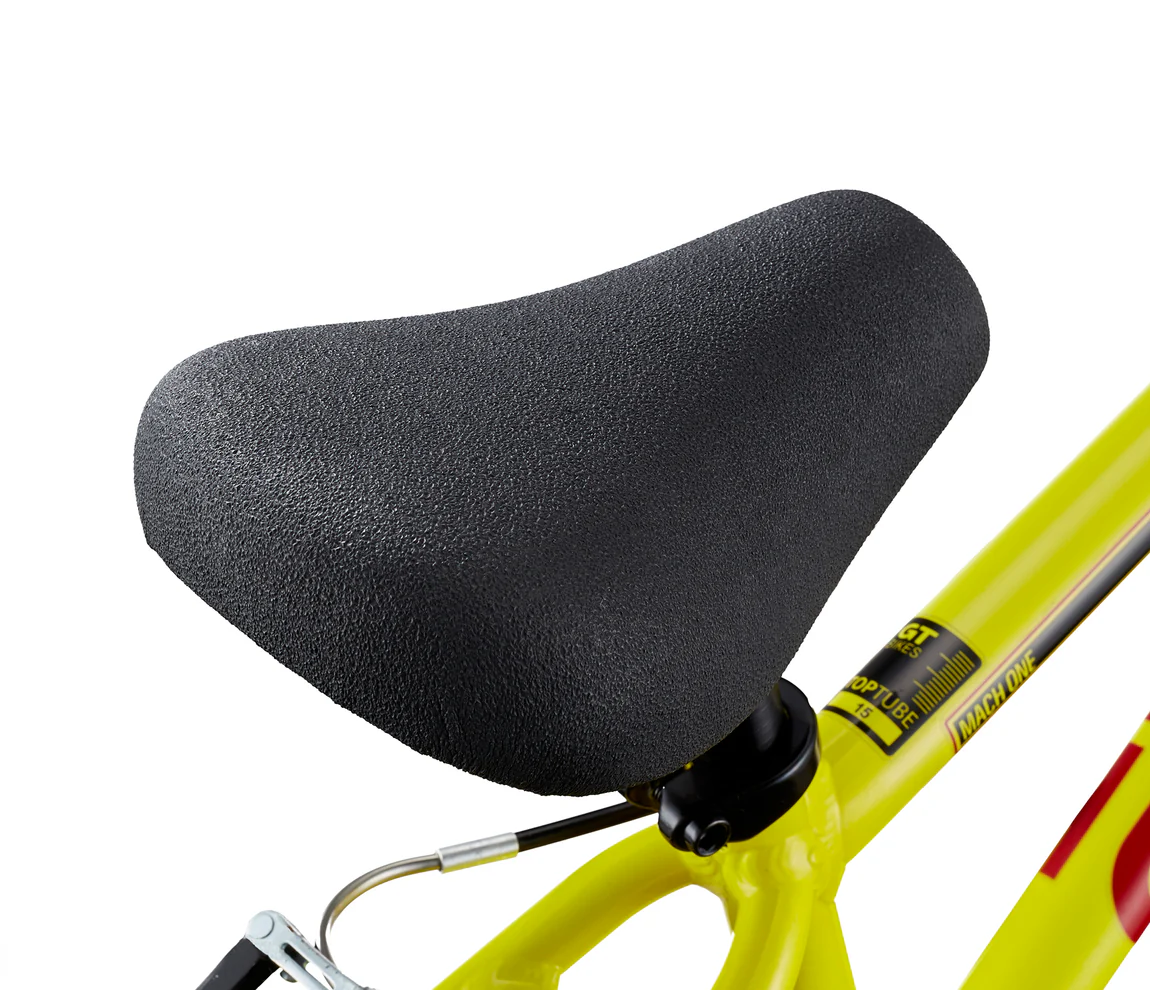

saddle: GT Uni Mini Padded
Brakes
brakes: Alloy V-type
brake levers: Alloy V-type
Geometry
| Sizes (in) | One Size |
|---|---|
| Top tube actual | 15.5 |
| Head tube angle | 73° ° |
| Seat tube angle | 71° ° |
| Standover | 6.28 |
| Head tube length | 3.54 |
| Wheelbase | 28.94 |
| Front center | 17.34 |
| Chainstay length | 9.45 |
| Bottom bracket height | 8.1 |
| Seat post diameter | 0.875 |
| Axel to crown | 10.39 |
| Dropouts | 10mm |
| Head tube type | A-Headset |
| Brake mounts | V-Brake |
| Rider area | 17.6 |
| Bottom bracket type | American |
| Fork rake | 1.3 |
| Axel to crown | 10.39 |
