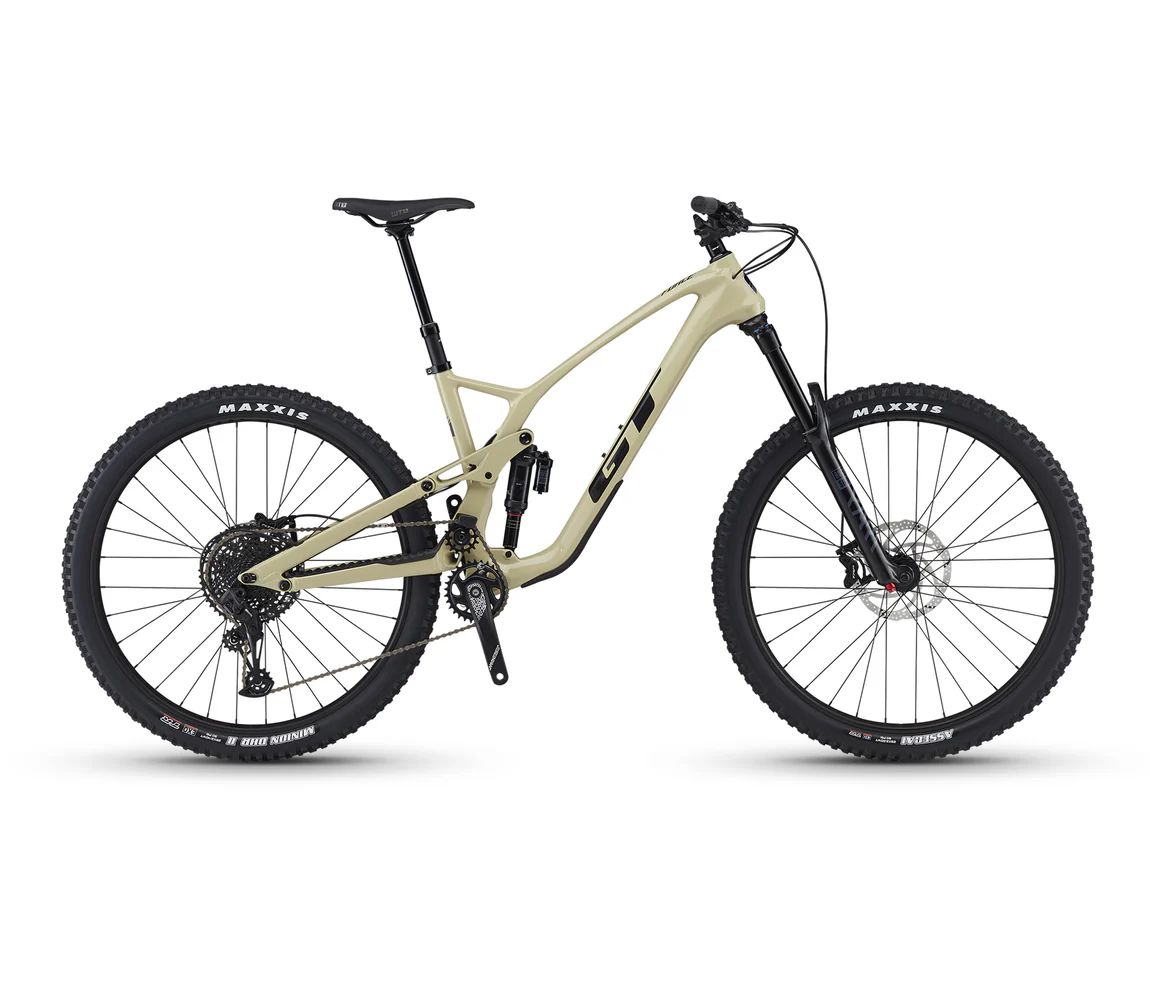

Force Carbon Elite
Take on the most challenging trails with the Force Elite, our most accessible long-travel carbon mountain bike. With our World Cup-winning, Idler-enhanced LTS system and longer, lower geometry, this all-around machine tames the trails and rolls with confidence—whether you choose to earn your turns or not. Its predictable and accurate handling is combined with a built-to-shred package that includes RockShox suspension, SRAM SX Eagle transmission, and integrated frame accessories, resulting in a ride that is faster, smoother, and sleeker than ever before.
- RockShox Yari RC 170mm Fork

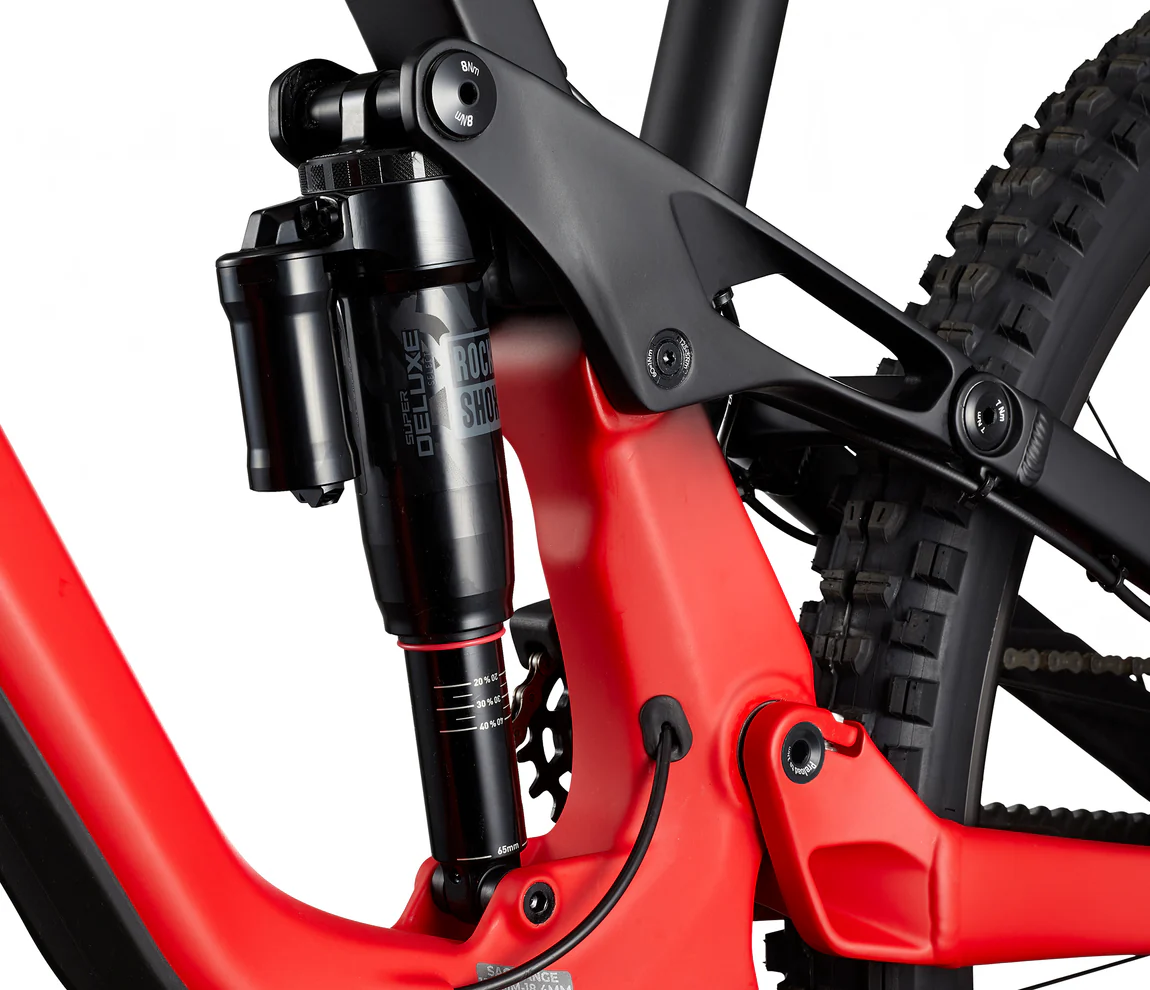

- RockShox Super Deluxe Rear Shock
- SRAM SX Eagle Drivetrain
$2,150.00
product description
Force Carbon Elite

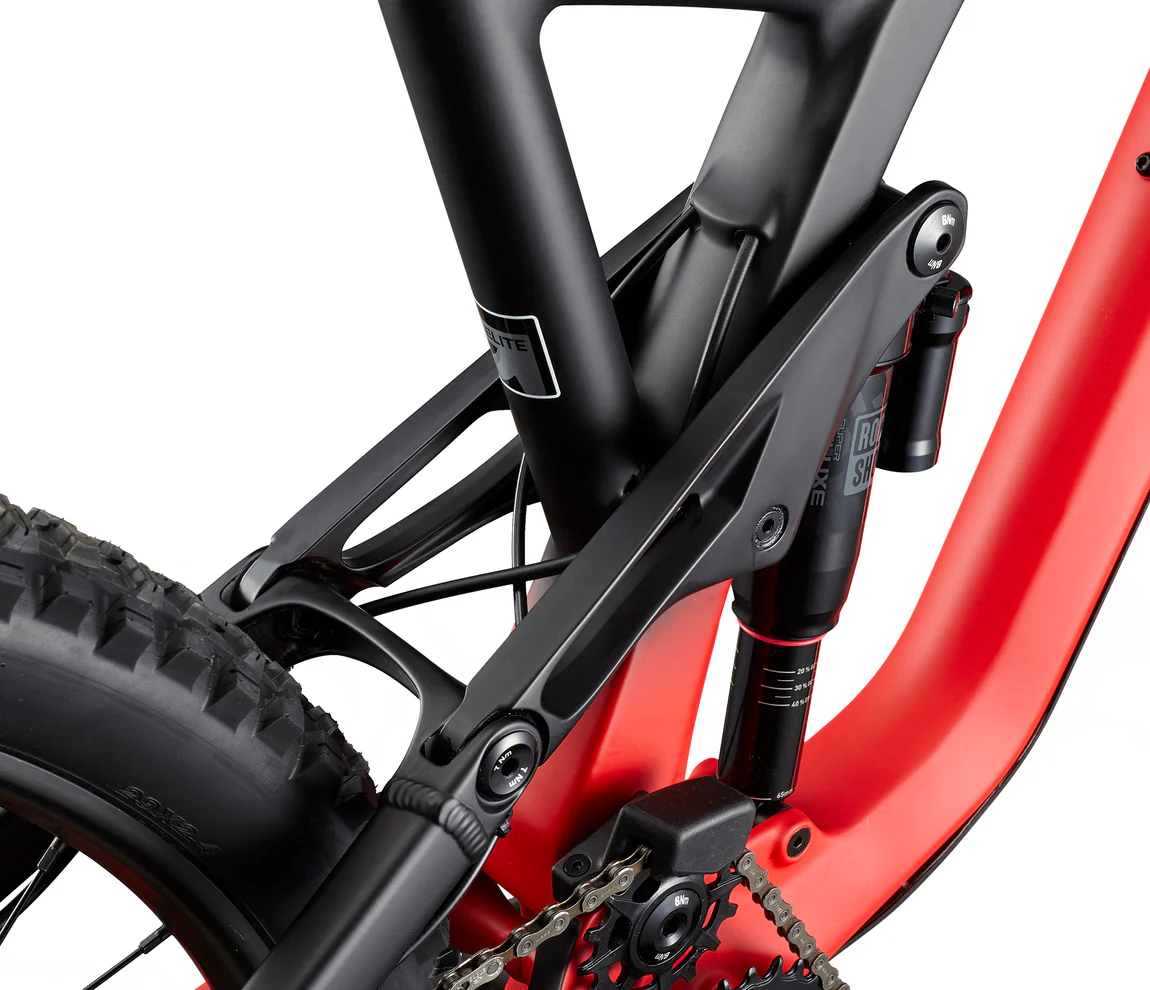

High Pivot LTS
High Pivot LTS, based on our Downhill World Cup-winning Fury, provides the most controllable and thrilling suspension performance available, allowing riders to go faster anywhere. Geometry and kinematics are created and optimized to provide stability at any speed and maximize performance by avoiding pedal kickback and providing excellent control during severe braking.
Added Adjustability
The dropout flip chip allows +/-10mm adjustable wheelbase, allowing riders to choose between 435mm and 445mm lengths. A longer wheelbase provides a more stable ride on fast, continuous descents, while a shorter wheelbase allows for a more lively and responsive riding.
Ruckus Management
The integrated chain guide eliminates undesirable chain drops in difficult situations, and specialized chainstay and seat stay protection keeps the bike quiet, allowing you to concentrate on what’s in front of you rather than what’s underneath.
Frame
frame: Force Carbon 29″ Frame, 160mm Travel, High Pivot LTS Suspension, 12x148mm Thru-Axle
sizes available: SM, MD, LG, XL
fork: RockShox Yari RC, 170mm, Motion Control, 42mm Offset
rear shock: RockShox Super Deluxe Select R, 230x65mm
wheel size29
Wheels
rims: WTB ST i30 TCS 2.0, 32h, Tubeless Ready
front hub: Formula, 15x110mm
rear hub: Formula, 12x148mm, HG Freehub Body
front tire: Continental Kryptotal Fr, 29×2.4″, Trail Endurance
rear tire: Continental Kryptotal Re, 29×2.4″, Trail Endurance
Drivetrain
rear derailleur: SRAM SX Eagle
shifters: SRAM SX Eagle, 12-Speed
rear cogs: SRAM PG-1210, 11-50T
chain: SRAM SX Eagle, 12-Speed
crank: Truvativ Descendant 6K, 30T
bottom bracket: Truvativ Powerspline BSA, 73mm

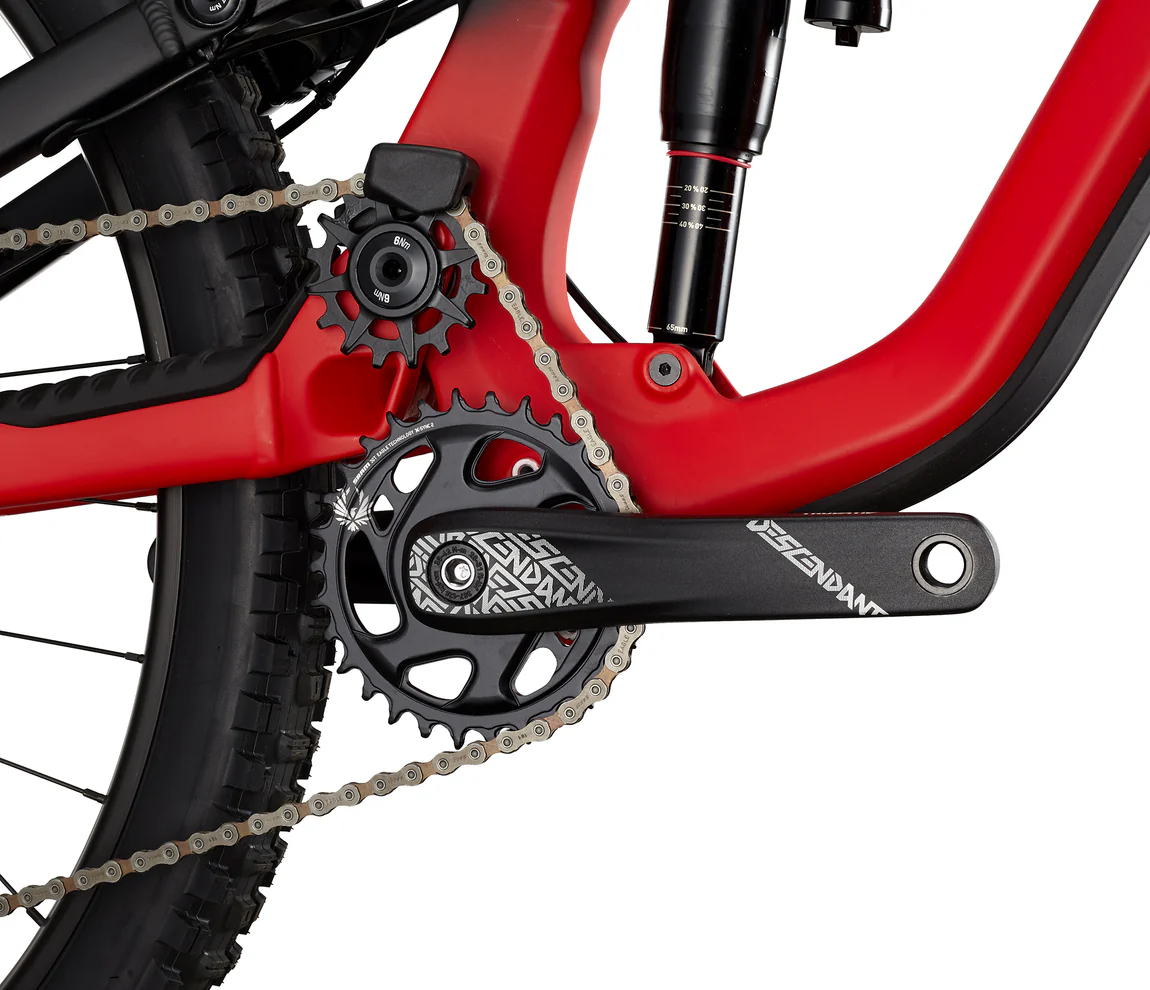

chain device: Force Idler Guide
Cockpit
handlebar: GT Alloy Riser Bar, 30mm Rise, 780mm, 5° Up, 8° Back (Width: S/M/L/XL – 80cm)
stem: GT Alloy, 45mm
grips: GT Mushroom
headset: FSA No.57
seatpost: GT DropKick, 31.6mm, (S – 125mm, M – 150mm, L/XL – 170mm)
saddle: GT Scoop Shallow Sport
Brakes

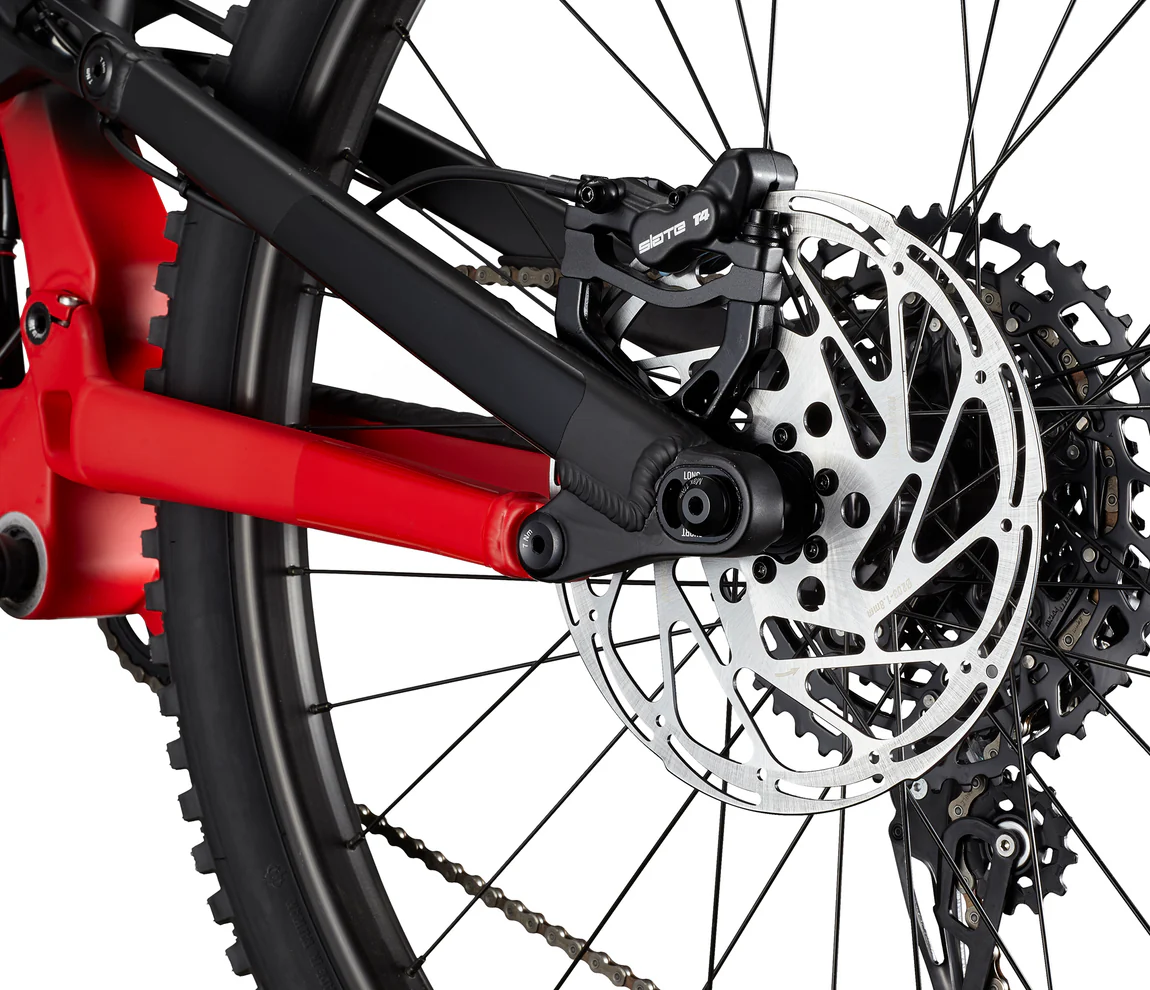

brakes: TRP Slate EVO T4, 203/203mm Rotors
Geometry
| Sizes (mm) | SM | MD | LG | XL |
|---|---|---|---|---|
| Seat tube length | 380 | 410 | 445 | 500 |
| Seat tube angle effective | 78 ° | 78 ° | 78 ° | 78 ° |
| Top tube horizontal | 563 | 590 | 617 | 654 |
| Top tube actual | 544 | 565 | 586 | 620 |
| Head tube angle | 63.5 ° | 63.5 ° | 63.5 ° | 63.5 ° |
| Seat tube angle | 78 ° | 78 ° | 78 ° | 78 ° |
| Standover | 725 | 730 | 740 | 760 |
| Head tube length | 110 | 120 | 130 | 140 |
| Stem length | 40 | 40 | 40 | 40 |
| Wheelbase | 1211/1221 | 1240/1250 | 1270/1280 | 1309/1319 |
| Front center | 777 | 807 | 836 | 876 |
| Chainstay length | 435/445 | 435/445 | 435/445 | 435/445 |
| Crank length | 165 | 165 | 170 | 170 |
| Bottom bracket drop | 30 | 30 | 30 | 30 |
| Bottom bracket height | 347 | 347 | 347 | 347 |
| Fork rake | 44 | 44 | 44 | 44 |
| Trail | 139 | 139 | 139 | 139 |
| Stack | 627 | 636 | 645 | 654 |
| Reach | 430 | 455 | 480 | 515 |
| Travel front | 170 | 170 | 170 | 170 |
| Travel rear | 160 | 160 | 160 | 160 |
Notes
Rear axle Flip Chip adjusts the Chainstay Length between 435mm and 445mm S and M are typically assembled in the “Short” setting of 435mm. L and XL are typically assembled in the “Long” setting of 445mm.
