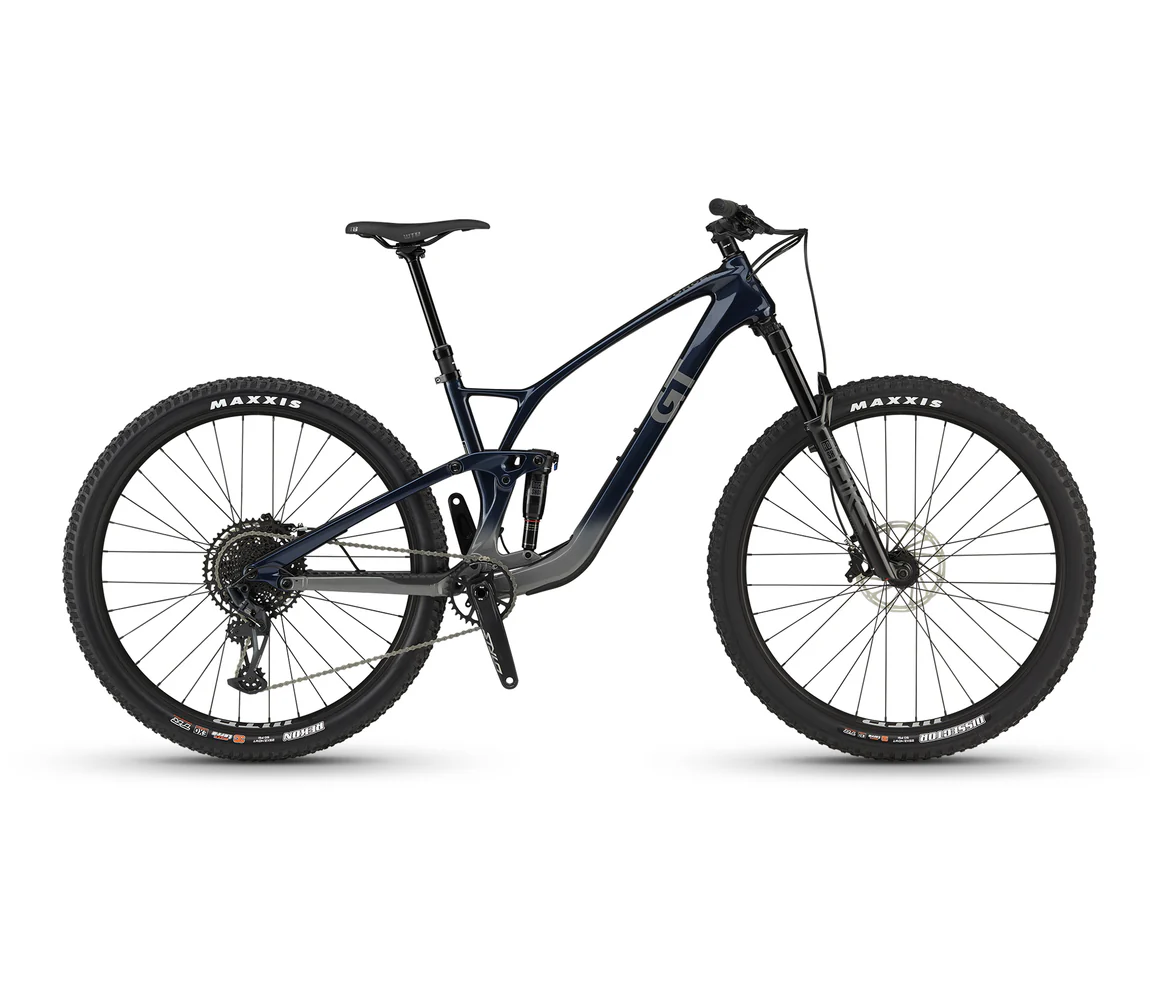

Sensor ST Carbon Pro
Smooth, sleek, and speedy. Sensor ST Pro, the newest addition to GT’s trail bike lineup, will take you to the peak of lung-busting climbs before impressing you with its downhill resolve and fluidity. This short trip carbon bicycle is designed for pedaling, combining lightweight climbing efficiency with dirt surfing geometry for riders who demolish all-day epics with the same zeal as an after-work power lap. Fine-tuned RockShox suspension provides dependable performance, control, and traction in steep terrain, up and down. With a low bottom bracket, you’ll be able to quickly choose the delightful, flowy route home. With a minimalist design that matches its ethos, this bike looks as smooth as it shreds.
- RockShox Pike Select + RC2, 140mm fork
- RockShox Deluxe Select + RT rear shock
- SRAM GX drivetrain
$2,700.00
product description
Sensor ST Carbon Pro
Short Travel Big Fun
Sensor ST is the ideal combination of short travel agility and progressive geometry for riders who want to get wild while retaining
Trail-Tuned Geometry
Sensor’s shape, designed to maximize good times on the trail, inspires riders to take their fun to the next level. The 65.5 degree headtube angle maintains it stable on descents, while the sharp 77.5 degree seattube angle makes climbing an easy.
LTS Suspension
Linkage Tuned Suspension offers a steady and economical suspension foundation. The 4-bar system is intended to be a highly adjustable suspension platform that maintains ground-hugging traction even under hard braking.
Frame
frame: Sensor ST Carbon 29” Frame, 120mm Travel, 12x148mm Thru-Axle, UDH
sizes available: SM, MD, LG, XL
fork: RockShox Pike Select + RC2, 140mm, Charger 3, DebonAir+, 44mm Offset
rear shock: RockShox Deluxe Select + RT, 185×47.5mm Trunnion
wheel size: 29
Wheels
rims: WTB KOM Trail i27, 32h, Tubeless Ready
front hub: Formula, 15x110mm
rear hub: Formula, 12x148mm, HG Freehub Body
front tire: Maxxis Dissector, 29×2.4″, 3C MaxxTerra, EXO
rear tire: Maxxis Rekon, 29×2.4″, 3C MaxxTerra, EXO
Drivetrain
rear derailleur: SRAM GX Eagle
shifters: SRAM NX Eagle, 12-Speed
rear cogs: SRAM PG-1230, 11-50T
chain: SRAM NX Eagle, 12-Speed
crank: Truvativ Stylo 6K, DUB, 32T
bottom bracket: SRAM DUB BSA, 73mm
Cockpit
handlebar: GT Alloy Riser Bar, 20mm Rise, 780mm, 5° Up, 8° Back (Width: S/M/L/XL – 80cm)
stem: GT Alloy, 45mm
grips: GT Mushroom
headset: FSA No.42
seatpost: GT DropKick, 31.6mm, (S – 125mm, M – 150mm, L/XL – 170mm)
saddle: WTB Silverado
Brakes
brakes: SRAM G2 RSC, 180/180mm Centerline Rotors
Geometry
| Sizes (mm) | SM | MD | LG | XL |
|---|---|---|---|---|
| Seat tube length | 380 | 400 | 420 | 460 |
| Top tube horizontal | 573 | 600 | 627 | 664 |
| Top tube actual | 542 | 565 | 591 | 623 |
| Head tube angle | 65.4 ° | 65.4 ° | 65.4 ° | 65.4 ° |
| Seat tube angle | 77.4 ° | 77.4 ° | 77.4 ° | 77.4 ° |
| Standover | 711 | 721 | 731 | 741 |
| Head tube length | 110 | 120 | 130 | 140 |
| Stem length | 40 | 40 | 40 | 40 |
| Wheelbase | 1187 | 1216 | 1246 | 1285 |
| Front center | 750 | 779 | 808 | 848 |
| Chainstay length | 440 | 440 | 440 | 440 |
| Crank length | 170 | 170 | 175 | 175 |
| Bottom bracket drop | 39 | 39 | 39 | 39 |
| Bottom bracket height | 340 | 340 | 340 | 340 |
| Fork rake | 44 | 44 | 44 | 44 |
| Trail | 125 | 125 | 125 | 125 |
| Stack | 621 | 629 | 638 | 647 |
| Reach | 435 | 460 | 485 | 520 |
| Travel front | 140 | 140 | 140 | 140 |
| Travel rear | 120 | 120 | 120 | 120 |
