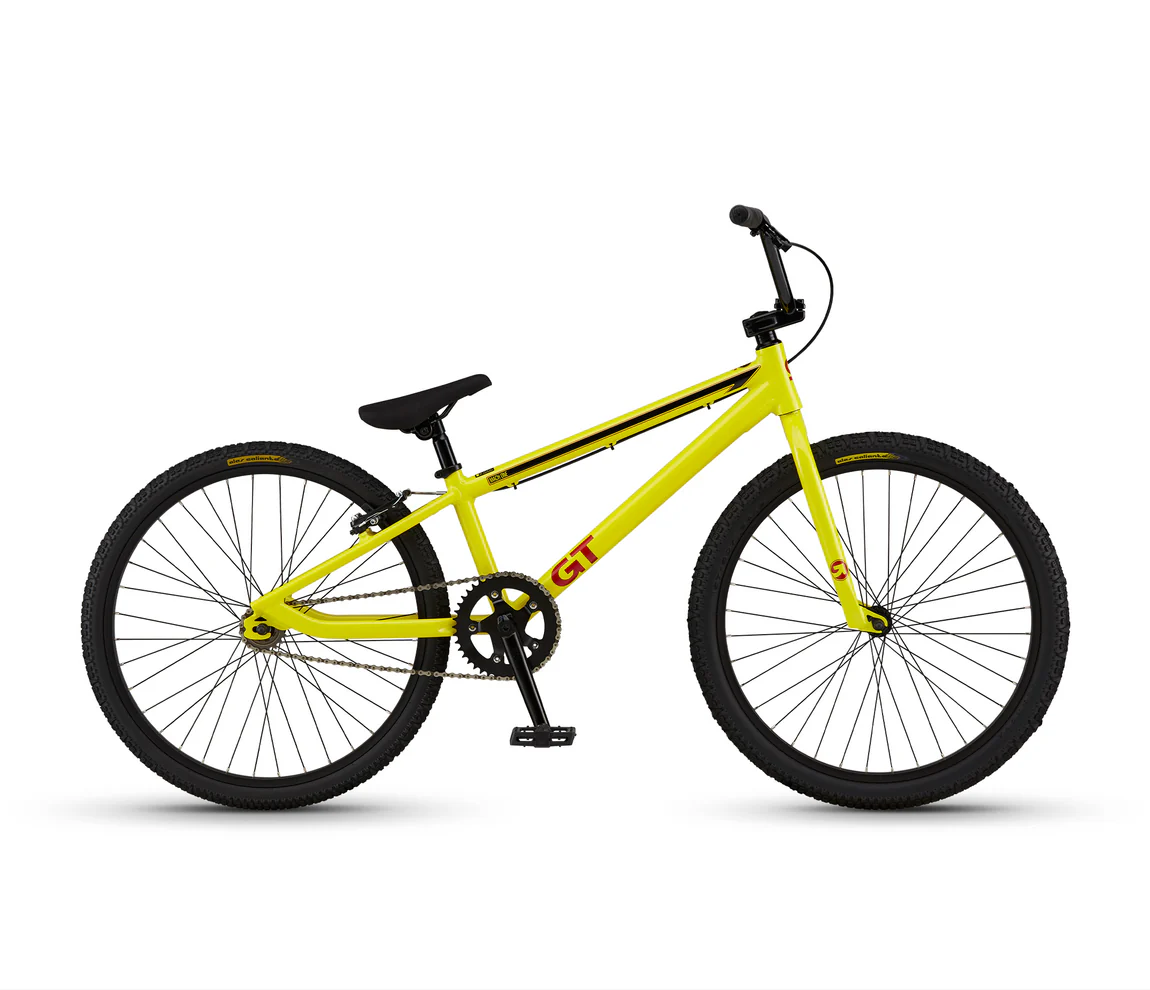

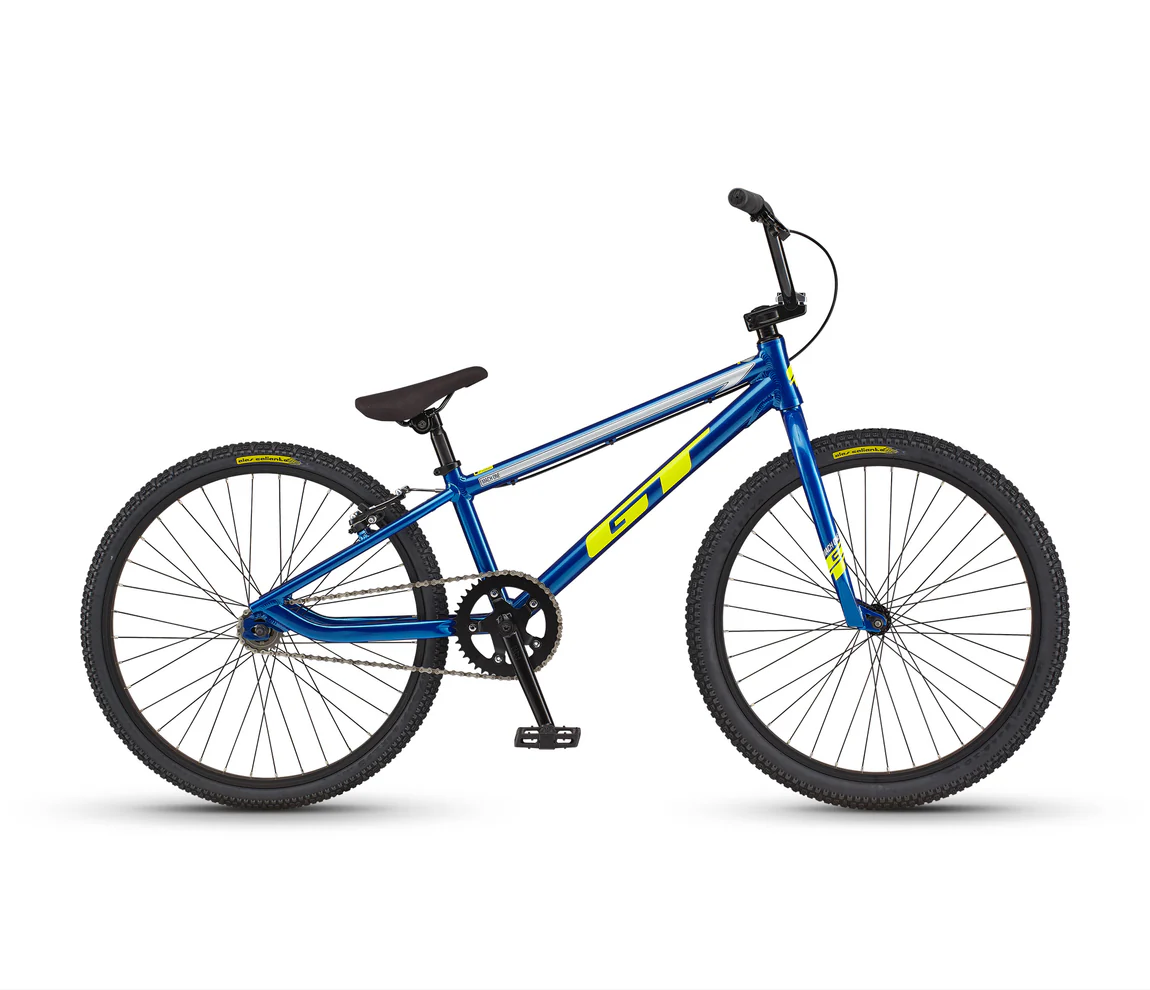

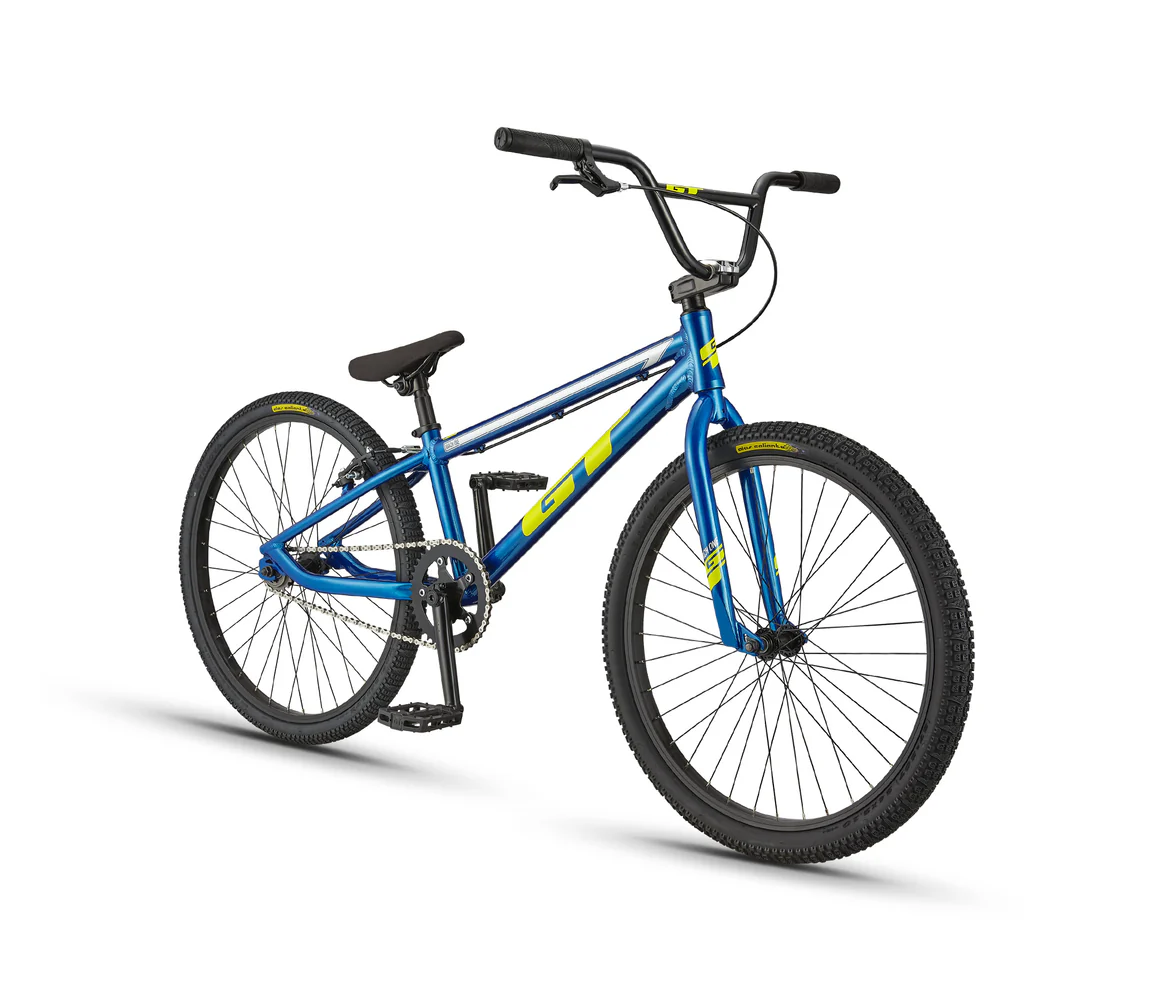

Mach One Pro 24
Size
- Influence by Speed alloy frame with reverse dropouts
- GT Top Load Stem
- GT Power Series Cr-Mo 3pc. Cranks, 110 BCD Spider
$450.00
product description
Mach One Pro 24
Frame
frameGT Mach One Race MK2, 6061 Alloy, Euro BB, Reverse Dropouts, V-Brakes, 1-1/8″ Integrated H/T
sizes availablePRO
forkGT BMX Race, Hi-Ten Steel 1 1/8″ Steerer, Tapered Legs, 366mm A/C, 3/8″ Dropouts
wheel size24
Wheels
rims: Alloy Single Wall, 36h
front hub: Steel Body, 36H, 3/8″ Axle
rear hub: Steel Flip Flop Thread-on Body, Freewheel, 36h, 3/8″ Axle
front tire: GT Wing 24 x 2.1″
rear tire: GT Wing 24 x 1.75″
spokes: Stainless Steel, 14g
Drivetrain
rear cogs: 18T Freewheel
chain: KMC S1
crank: GT Power Series Tubular Cr-Mo 3pc., 175mm Arms, 19mm x 8T Splined Spindle, 110 BCD Steel Spider, GT 42T Steel Chainring
bottom bracket: Euro Sealed Bearing
pedals: GT Low Profile FS Platform Design
Cockpit
handlebar: GT Race, Steel, 6.5″H x 29″W, 4° Up, 8° Back
stem: GT Top Load, 50mm
grips: GT Statement
headset: 1-1/8″ Sealed Integrated (41.8 x 45)
seatpost: Alloy, 27.2mm x 200mm
saddle: Railed
Brakes
brakes: Alloy V-type
brake levers: Alloy V-type
Geometry
| Sizes (in) | LG |
|---|---|
| Top tube actual | 21.75 |
| Head tube angle | 74° ° |
| Seat tube angle | 70° ° |
| Standover | 8.93 |
| Head tube length | 4.33 |
| Wheelbase | 39 |
| Front center | 23.6 |
| Chainstay length | 15.43 |
| Bottom bracket height | 11.7 |
| Seat post diameter | 1 |
| Axel to crown | 14.4 |
| Dropouts | 10mm |
| Head tube type | Integrated |
| Brake mounts | V-Brake |
| Rider area | 24.3 |
| Bottom bracket type | Threaded |
| Fork rake | 14.4 |
| Axel to crown | 14.4 |
