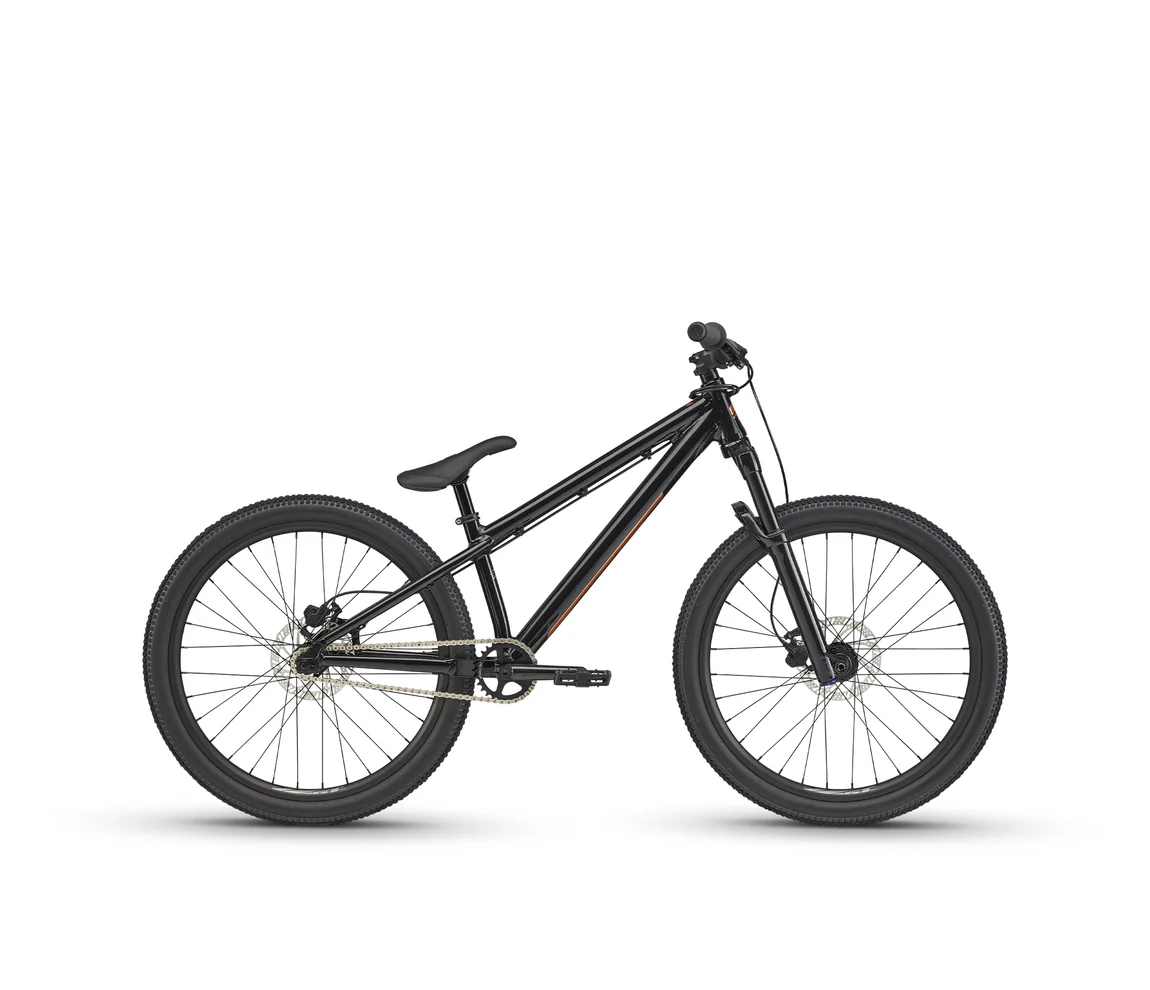

LaBomba Pro
This dirt jumper is ready to destroy right away. The LaBomba’s lightweight aluminum frame has responsive geometry and integrated chain tensioners for optimal performance. The LaBomba Pro is equipped with a hydraulic brake for barspins and tailwhips, as well as a 100mm Manitou Circus Expert air fork, making it ready for any challenge. Choose between jump parks, pump tracks, and skateparks for your session.
- Manitou Circus Expert Fork, 32mm 7050 Alloy Stanchions, 100mm Travel, 110x20mm Dropout
- GT Power Series 22mm Cr-Mo 3pc. Cranks/ Kenda 3-Sixty Tires
- Alloy Sealed 20mm Disc Front Hub/ Alloy Sealed 13T Cassette Hub
$2,399.00
product description
LaBomba Pro
Frame
frame: 6061 Aluminum, BSA BB, Disc Brake Mount, Integrated 1-1/8″-1.5″ Taper H/T, 3/8″ Horizontal Adjustable Dropout w/ Integrated Chain Tensioners
sizes available: MD, LG
fork: Manitou Circus Expert, Coil w/ Rebound Adjust, 20mm Thru Axle, 1-1/8″-1.5″ Taper AL Steerer, 100mm Travel, Pre Load Adjust, Black Stanchions
wheel size: 26
Wheels
rims: Alloy Double Wall, 32h
front hub: Sealed Alloy Disc, 20mm
rear hub: Alloy Disc Body, Sealed Bearings, 32 Hole, 3/8″ x 17mm Female Bolt
front tire: Kenda 3-Sixty 2.35″
rear tire: Kenda 3-Sixty 2.35″
spokes: Stainless Steel, 14g
Drivetrain
rear cogs13T Cog
chain: KMC HL1 Wide
crank: GT Power Series 3pc Chromoly 170mm, 22mm x 48T Spindle, GT NBS 28T Alloy Chainwheel
bottom bracket: BSA Sealed
pedals: GT Logo PC Platform
Cockpit
handlebar: GT Alloy Riser Bar, 30mm Rise, 780mm Wide, 5° Up, 8° Back
stem: GT 3D Forged Alloy Stem 35mm, 31.8mm Clamp
grips: GT Super Soft Flanged
headset1-1/8-1.5″ Taper Sealed Integrated, (45)
seatpost: Alloy Pivotal 27.2 x 200mm
saddle: GT Pivotal Slim Padded
Brakes
brakes: Hydro Disc, 160mm Rotor
brake levers: 2 Finger Hydro
Geometry
| Sizes (in) | MD | LG |
|---|---|---|
| Seat tube length | 334 | 334 |
| Seat tube angle effective | 75.6 ° | 75.6 ° |
| Top tube horizontal | 570 | 590 |
| Top tube actual | 564 | 590 |
| Head tube angle | 68.5 ° | 68.5 ° |
| Standover | 691 | 691 |
| Head tube length | 110 | 110 |
| Wheelbase | 1057 | 1087 |
| Front center | 673 | 702 |
| Chainstay length | 378 | 378 |
| Bottom bracket drop | 25 | 25 |
| Bottom bracket height | 334 | 334 |
| Dropouts | 10mm | 10mm |
| Fork rake | 41 | 41 |
| Trail | 90 | 90 |
| Stack | 588 | 588 |
| Reach | 406 | 436 |
| Travel front | 100 | 100 |
