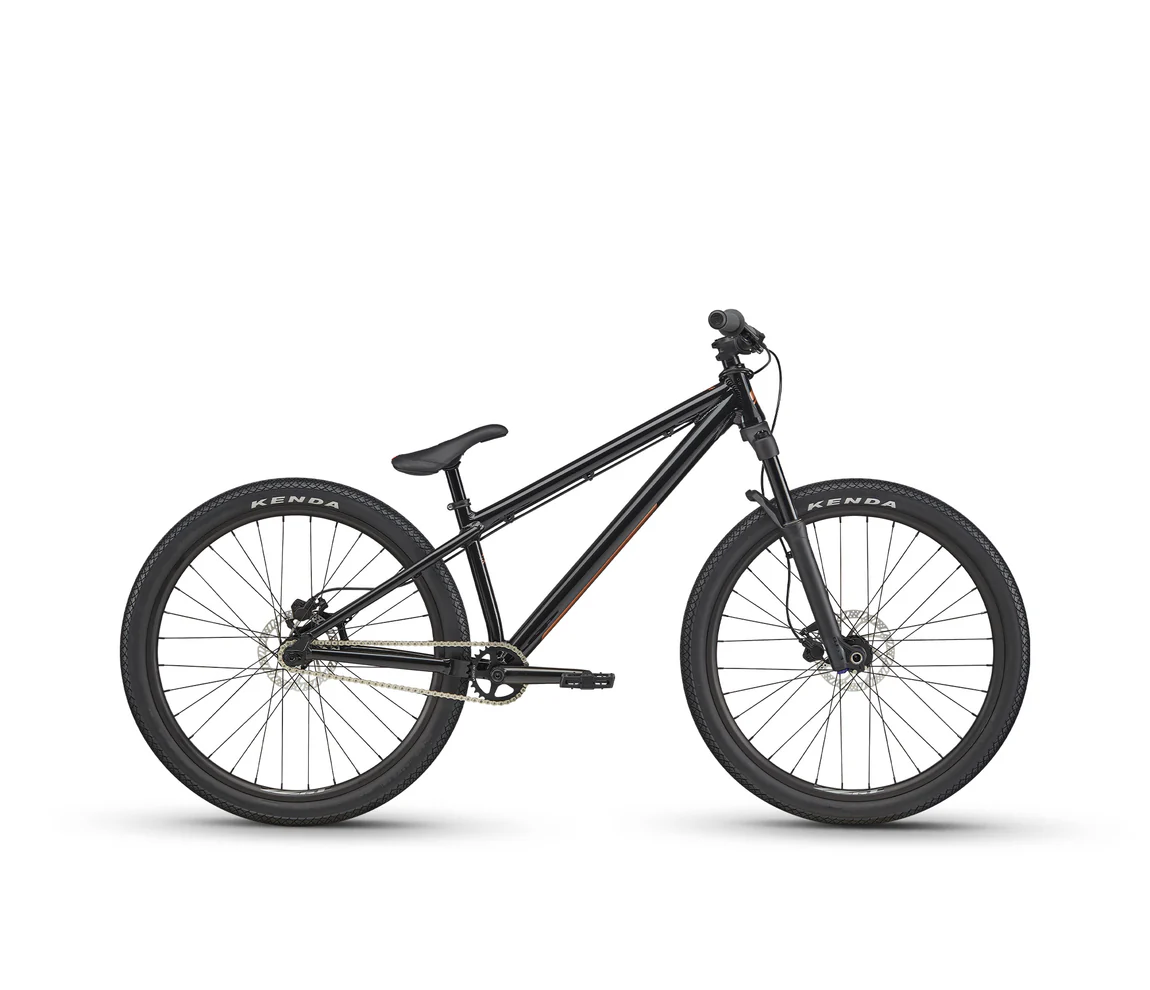

LaBomba 24
- Manitou Machete J-Unit, 32mm, 6066 Alloy Stanchions, 100mm Travel, 110x15mm Boost
- GT Power Series 3pc Cr-Mo Cranks
- Kenda Small Block Eight Tires/ Double Wall Rims
$1,950.00
product description
LaBomba 24
Frame
frame: 6061 Aluminum, BSA BB, Disc Brake Mount, Integrated 1-1/8″-1.5″ Taper H/T, 3/8″ Horizontal Adjustable Dropout w/ Integrated Chain Tensioners
sizes available: One Size
fork: Manitou Machete J-Unit, Air Spring w/ Rebound Adjust, 15mm Thru Axle Dropout, 1-1/8″-1.5″ Taper AL Steerer, Pre Load Adjust, Black Stanchions
wheel size: 24
Wheels
rims: Alloy Double Wall, 32h
front hub: Sealed Alloy Disc, 15×110 Boost
rear hub: Alloy Disc Body, Sealed Bearings, 32 Hole, 3/8″ x 17mm Female Bolt
front tire: Kenda Small Block Eight 2.10″
rear tire: Kenda Small Block Eight 2.10″
spokes: Stainless Steel, 14g
Drivetrain
rear cogs: 13T Cog
chain: KMC HL1 Wide
crank: GT Power Series 3pc Chromoly 140mm, 19mm x 8T Spindle, GT NBS 28T Alloy Chainwheel
bottom bracket: BSA Sealed
pedals: GT Logo PC Platform
Cockpit
handlebar: GT Alloy Riser Bar, 30mm Rise, 650mm Wide, 5° Up, 9° Back
stem: GT 3D Forged Alloy Stem 35mm, 31.8mm Clamp
grips: GT Super Soft Flanged
headset: 1-1/8-1.5″ Taper Sealed Integrated, (45)
seatpost: Alloy Pivotal 27.2 x 200mm
saddle: GT Pivotal Slim Padded
Brakes
brakes: Hydro Disc, 160mm Rotor (F/R)
brake levers: Brake Levers Alloy, 2 Finger Hydro
Geometry
| Sizes (mm) | One Size |
|---|---|
| Seat tube length | 290 |
| Seat tube angle effective | 75.6 ° |
| Top tube horizontal | 525 |
| Top tube actual | 520 |
| Head tube angle | 68.5 ° |
| Standover | 640 |
| Head tube length | 110 |
| Wheelbase | 986 |
| Front center | 623 |
| Chainstay length | 353 |
| Bottom bracket drop | 10 |
| Bottom bracket height | 290 |
| Dropouts | 10mm |
| Fork rake | 40 |
| Trail | 83 |
| Stack | 519 |
| Reach | 375 |
| Travel front | 100 |
