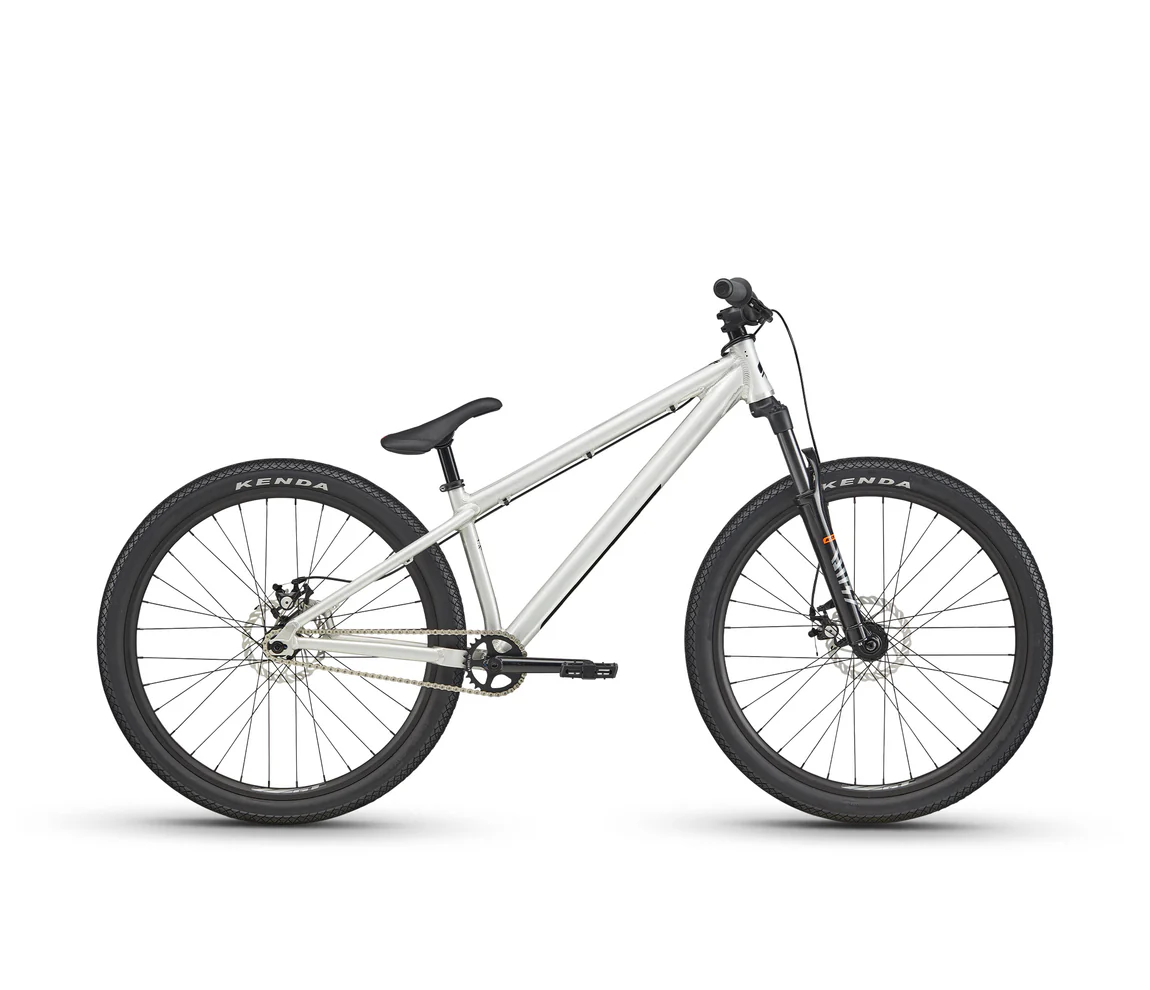

LaBomba
Designed to be a dirt jumper you’ll be pleased to destroy right out of the box. The LaBomba’s lightweight aluminum frame has ultra-responsive geometry and integrated chain tensioners to keep everything running smoothly. A 100mm RST travel fork smoothes out harsh knocks, and a selection of GT BMX aftermarket favorites assures you’ll turn heads on every lap. Whether it’s the jump park, pump track, or skatepark, the LaBomba is ready for anything.
- RST Dirt Fork, 100mm Travel, 15mm Thru Axle, 32mm Stanchions
- GT Power Series 22mm Cr-Mo 3pc. Cranks/ Kenda 3-Sixty Tires
- Alloy Sealed 20mm Disc Front Hub/ Alloy Sealed 13T Cassette Hub
$1,800.00
product description
Frame
frame: 6061 Aluminum, BSA BB, Disc Brake Mount, Integrated 1-1/8″-1.5″ Taper H/T, 3/8″ Horizontal Adjustable Dropout With Integrated Chain Tensioners
sizes available: MD, LG
fork: RST Dirt-T, 26″, 100mm Travel, Al Lowers, Cr-Mo Steel Steerer, 32mm Stanchion Black, 15mm Thru Axle, Disc Mount Only
wheel size: 26
Wheels
rims: Alloy Double Wall, 32h
front hub: Sealed Alloy Disc, 15×100
rear hub: Alloy Disc Body, Sealed Bearings, 32 Hole, 3/8″ X 17mm Female Bolt
front tire: Kenda 3-Sixty 2.25″
rear tire: Kenda 3-Sixty 2.25″
spokes: Stainless Steel
Drivetrain
rear cogs: 13T Cog
chain: KMC HL1 Wide
crank: GT Power Series 3pc Chromoly 170mm, 19mm X 8T Spindle, GT NBS 28T Alloy Chainwheel
bottom bracket: BSA Sealed
pedals: GT Logo PC Platform
Cockpit
handlebar: GT Alloy Riser Bar, 30mm Rise, 780mm Wide, 5° Up, 8° Back
stem: GT 3D Forged Alloy 35mm, 35mm Clamp
grips: GT Super Soft Flanged
headset: 1-1/8-1.5″ Taper Sealed Integrated, (45)
seatpost: Alloy Pivotal 27.2 X 200mm
saddle: GT Pivotal Slim Padded
Brakes
brakes: Mechanical Disc, 160mm Rotor (F/R)
brake levers: Alloy, 2 Finger
Geometry
| Sizes (in) | MD | LG |
|---|---|---|
| Seat tube length | 334 | 334 |
| Seat tube angle effective | 75.6 ° | 75.6 ° |
| Top tube horizontal | 570 | 590 |
| Top tube actual | 564 | 590 |
| Head tube angle | 68.5 ° | 68.5 ° |
| Standover | 691 | 691 |
| Head tube length | 110 | 110 |
| Wheelbase | 1057 | 1087 |
| Front center | 673 | 702 |
| Chainstay length | 378 | 378 |
| Bottom bracket drop | 25 | 25 |
| Bottom bracket height | 334 | 334 |
| Dropouts | 10mm | 10mm |
| Fork rake | 41 | 41 |
| Trail | 90 | 90 |
| Stack | 588 | 588 |
| Reach | 406 | 436 |
| Travel front | 100 | 100 |
