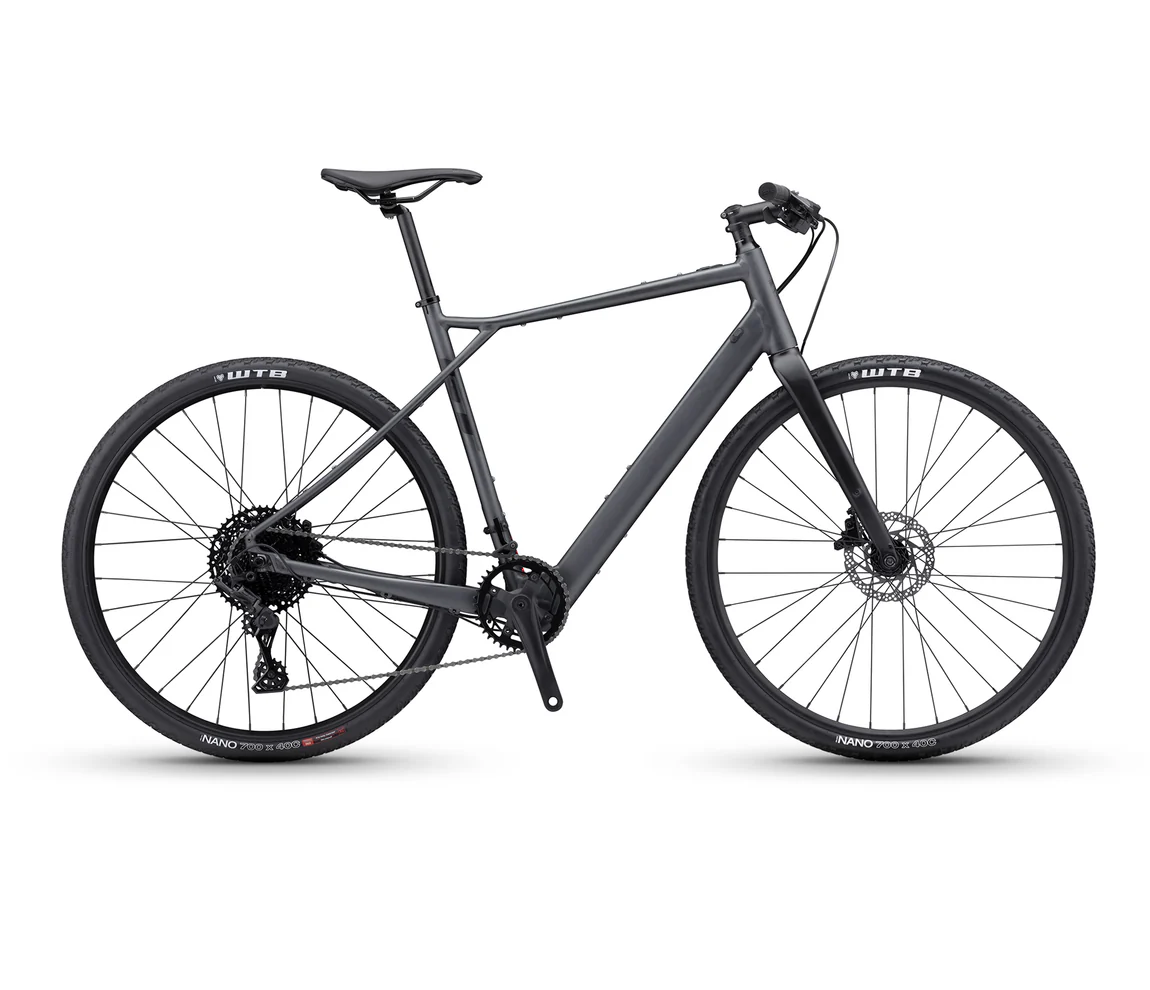

eGrade Current
- Ebikemotion 35+ with 250wh battery
- WTB Nano 700x40c tires
- Microshift Advent X 1×10 drivetrain
$1,899.00
product description
eGrade Current
Adding pedal aid to Bike Radar’s gravel bike of the year. Yep. With the MAHLE ebikemotion drive unit and the Grade’s floating seat stays, you’ll be comfortable and confident no matter what comes your way. The Grade Current has a flat bar to keep you comfortable and hydraulic disc brakes to help you to stop quickly with all that extra power.
Frame
frame: Grade Alloy Triple Triangle frame, Ebikemotion specific design, Internal Battery, Tapered Head Tube
sizes available: SM, MD, LG
fork: GT Grade E-Carbon, 1.5″ Tapered Carbon Steerer, 12×100 Thru-Axle
wheel size: 700c
Wheels
rims: Shining, 32h
front hub: Formula, 12x100mm, 32H
rear hube: Bikemotion X35+, 32H
front tire: WTB Nano Comp, 700 x 40
rear tire: WTB Nano Comp, 700 x 40
Drivetrain
rear derailleur: MicroSHIFT M6205
shifters: MicroSHIFT M100, 10-speed
rear cogsmicro: SHIFT, 11-48T
chain: KMC X10, 10-speed
crank: Prowheel Charm, 40T
bottom bracket: BSA, Square Taper
chain device: Chain Guide
pedals: Not included
Cockpit
handlebar: GT Alloy Flat Bar 640mm
stem: GT All Terra 3D Forged Alloy, 31.8
grips: Fabric Silicone Cell
headset: 1.5″ Lower to 1-1/8″ Upper w/ Reducer, 25mm Alloy Top Cap
seatpost: GT All Terra Two Bolt Alloy
saddle: Fabric Scoop Shallow/ Sport, Steel Rails
Brakes
brakes: Shimano MT200 Hydro Disc, 160/160mm Rotors
E-Bike
drive unit: MAHLE ebikemotion X35 250W
battery: MAHLE ebikemotion X35 250Wh
charger: X35 Charger
Geometry
| Sizes (mm) | SM | MD | LG | XL |
|---|---|---|---|---|
| Seat tube length | 458 | 505 | 553 | 600 |
| Seat tube angle effective | 73 ° | 73 ° | 73 ° | 73 ° |
| Top tube horizontal | 545 | 562 | 581 | 601 |
| Top tube actual | 523 | 542 | 562 | 585 |
| Head tube angle | 70 ° | 71 ° | 71 ° | 71 ° |
| Standover | 741 | 782 | 822 | 862 |
| Head tube length | 124 | 150 | 183 | 214 |
| Wheelbase | 1062 | 1065 | 1086 | 1107 |
| Front center | 617 | 621 | 641 | 662 |
| Chainstay length | 455 | 455 | 455 | 455 |
| Bottom bracket drop | 75 | 75 | 75 | 75 |
| Bottom bracket height | 284 | 284 | 284 | 284 |
| Fork rake | 55 | 55 | 55 | 55 |
| Stack | 550 | 577 | 603 | 630 |
| Reach | 385 | 405 | 425 | 445 |
