eGrade Bolt

  • Ebikemotion 35+ with 250wh battery
  • Shimano GRX40000 2×10 drivetrain
  • WTB Nano 700x40c tires

$2,200.00

Categories: ,
Share
Tweet
Pinterest
Email
  • Money Back Guarantee
  • Top Quality Vegan Item
  • Fast & Secure Checkout

product description

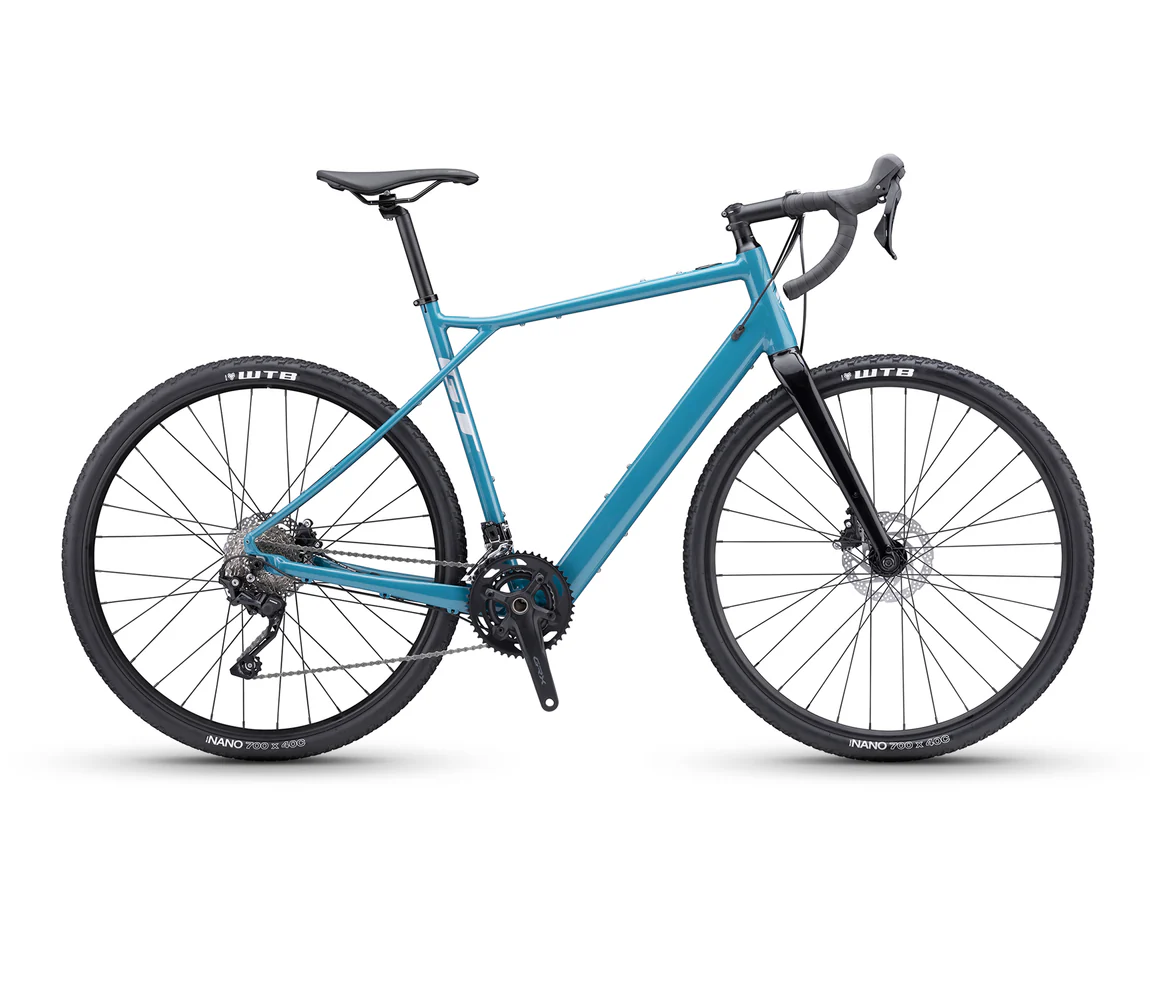

eGrade Bolt

Adding pedal aid to Bike Radar’s gravel bike of the year. Yep. With the MAHLE ebikemotion drive unit and the Grade’s floating seat stays, you’ll be comfortable and confident no matter what comes your way.

Frame

frame: Grade Alloy Triple Triangle frame, Ebikemotion specific design, Internal Battery, Tapered Head Tube

sizes available: SM, MD, LG

fork: GT Grade E-Carbon, 1.5″ Tapered Carbon Steerer, 12×100 Thru-Axle

wheel size: 700c

Wheels

rims: Shining, 32h

front hub: Formula, 12x100mm, 32H

rear hube: Bikemotion X35+, 32H

front tire: WTB Nano Comp, 700 x 40

rear tire: WTB Nano Comp, 700 x 40

Drivetrain

rear derailleur: Shimano GRX

shifters: Shimano GRX400, 10-speed

rear cogs: Shimano HG500, 11-34T

chain: KMC X10, 10-speed

crank: Shimano GRX, 46/30

bottom bracket: Shimano BSA RS500

chain device: Chain Guide

pedals: Not included

Cockpit

handlebar: GT Butted 6061 Alloy, 16° Flare Drop

stem: GT All Terra 3D Forged Alloy, 31.8

grips: GT Grip Bar Tape w/Gel, 3.5mm

headset: 1.5″ Lower to 1-1/8″ Upper w/ Reducer, 25mm Alloy Top Cap

seatpost: GT All Terra Two Bolt Alloy

saddle: Fabric Scoop Shallow/ Sport, Steel Rails

Brakes

brakes: Shimano GRX 400 Hydro Disc, 160/160mmRT56 Rotors

E-Bike

drive unit: MAHLE ebikemotion X35 250W

battery: MAHLE ebikemotion X35 250Wh

charger: X35 Charger

Geometry

Sizes (mm) SM MD LG XL
Seat tube length 458 505 553 600
Seat tube angle effective 73 ° 73 ° 73 ° 73 °
Top tube horizontal 545 562 581 601
Top tube actual 523 542 562 585
Head tube angle 70 ° 71 ° 71 ° 71 °
Standover 741 782 822 862
Head tube length 124 150 183 214
Wheelbase 1062 1065 1086 1107
Front center 617 621 641 662
Chainstay length 455 455 455 455
Bottom bracket drop 75 75 75 75
Bottom bracket height 284 284 284 284
Fork rake 55 55 55 55
Stack 550 577 603 630
Reach 385 405 425 445
