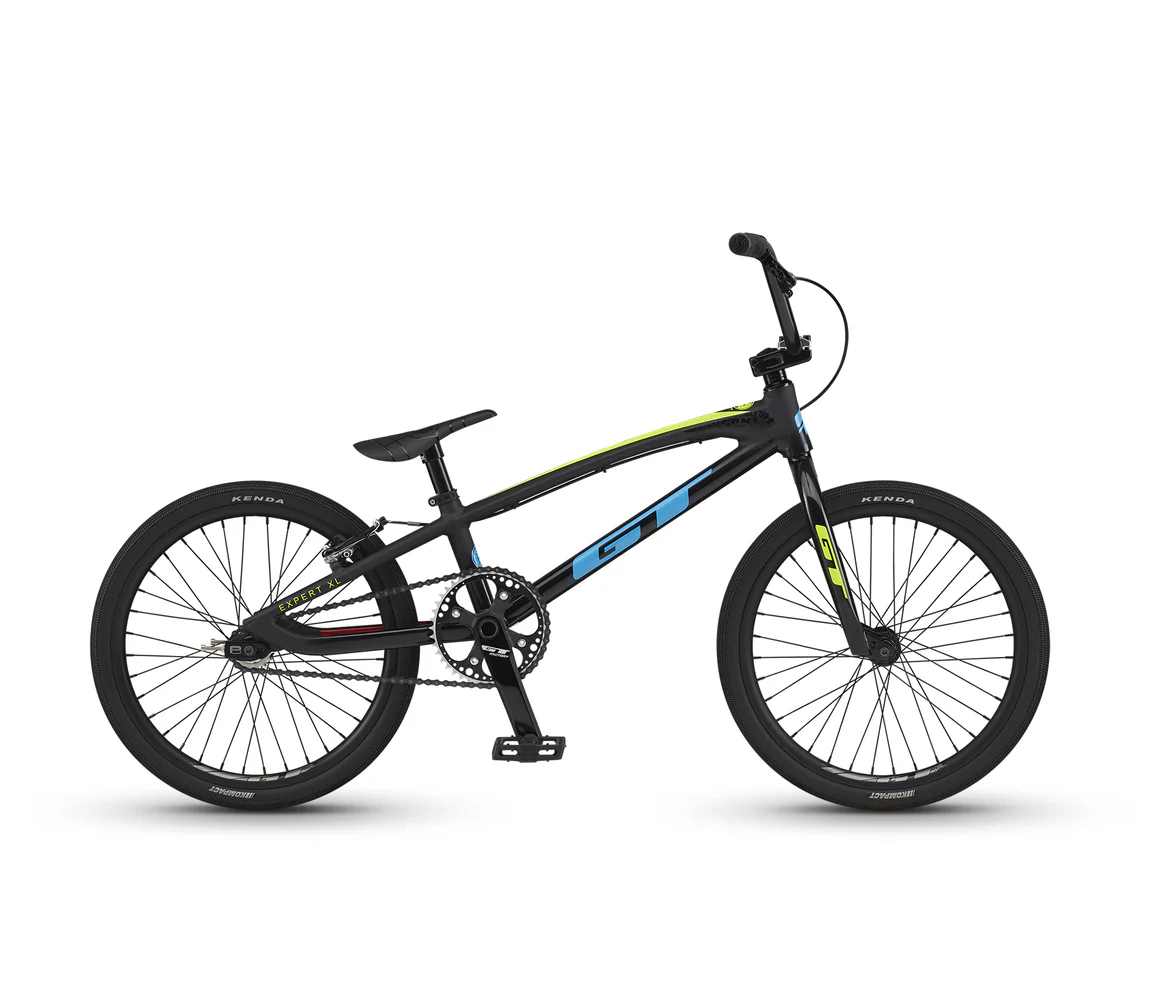

Speed Series Expert XL
- Speed Alloy Frame with Reverse Dropouts
- Speed Series Aero Double Wall rims
- Kenda Kompact Pro Race tires
$500.00
product description
Frame
frame: GT Speed Series MK7 Junior Race, 6061-T6 AL, Alloy Formed and Butted Speed Metal Tubes, Reverse Dropouts, Euro BB, 1-1/8″ Integrated H/T
sizes available: EXPERT XL
fork: GT BMX Pro Race, 100% Cr-Mo 1 1/8″ Steerer, Tapered Legs, 305mm A/C, 3/8″ Dropouts
wheel size: 20
Wheels
rims: Alloy Double Wall, 36h
front hub: GT Speed Series, Alloy Sealed, 3/8″ Female Allen Bolt
rear hub: GT Speed Series, Alloy Sealed 3/8″ Female Allen Bolt Cassette
front tire: Kenda Kompact Pro Race 1.5″
rear tire: Kenda Kompact Pro Race 1.5″
spokes: Stainless Steel, 14g
Drivetrain
rear cog: s16T Cog
chain: KMC Z1 Narrow, 3/32″
crank: GT Forged Alloy 2pc., 170mm Arms, 24mm Hollow/ Cr-Mo Spindle, 104 BCD 42T AL CNC Chain Ring, Alloy Chain Ring Bolts
bottom bracket: EB24 Sealed Bearings
chain device: 6061 AL CNC Chain Tensioners
pedals: GT Logo PC Platform
Cockpit
handlebar: GT Speed Cr-Mo 6.5″H x 26″W, 8° Sweep, 4° Up, Taper Cross Bar
stem: GT Top Load, 40mm
grips: GT Statement
headset; 1-1/8″ Sealed Integrated (41.8 x 45)
seatpost: Integrated
saddle: BOX Echelon
Brakes
brakes: Promax MV-87, 85mm Cold Forged AL Arms, Mini V-Type
brake levers: Alloy V-type
Geometry
| Sizes (in) | Expert XL |
|---|---|
| Top tube actual | 20 |
| Head tube angle | 73 ° |
| Seat tube angle | 70 ° |
| Standover | 6.4 |
| Head tube length | 4 |
| Wheelbase | 35.8 |
| Front center | 22.4 |
| Chainstay length | 13.62 |
| Bottom bracket height | 11.5 |
| Seat post diameter | 27.2 |
| Axel to crown | 12.5 |
| Dropouts | 10mm |
| Brake mounts | V-Brakes |
| Rider area | 21.44 |
| Bottom bracket type | BSA |
| Fork rake | 1.3 |
| Axel to crown | 12.5 |
